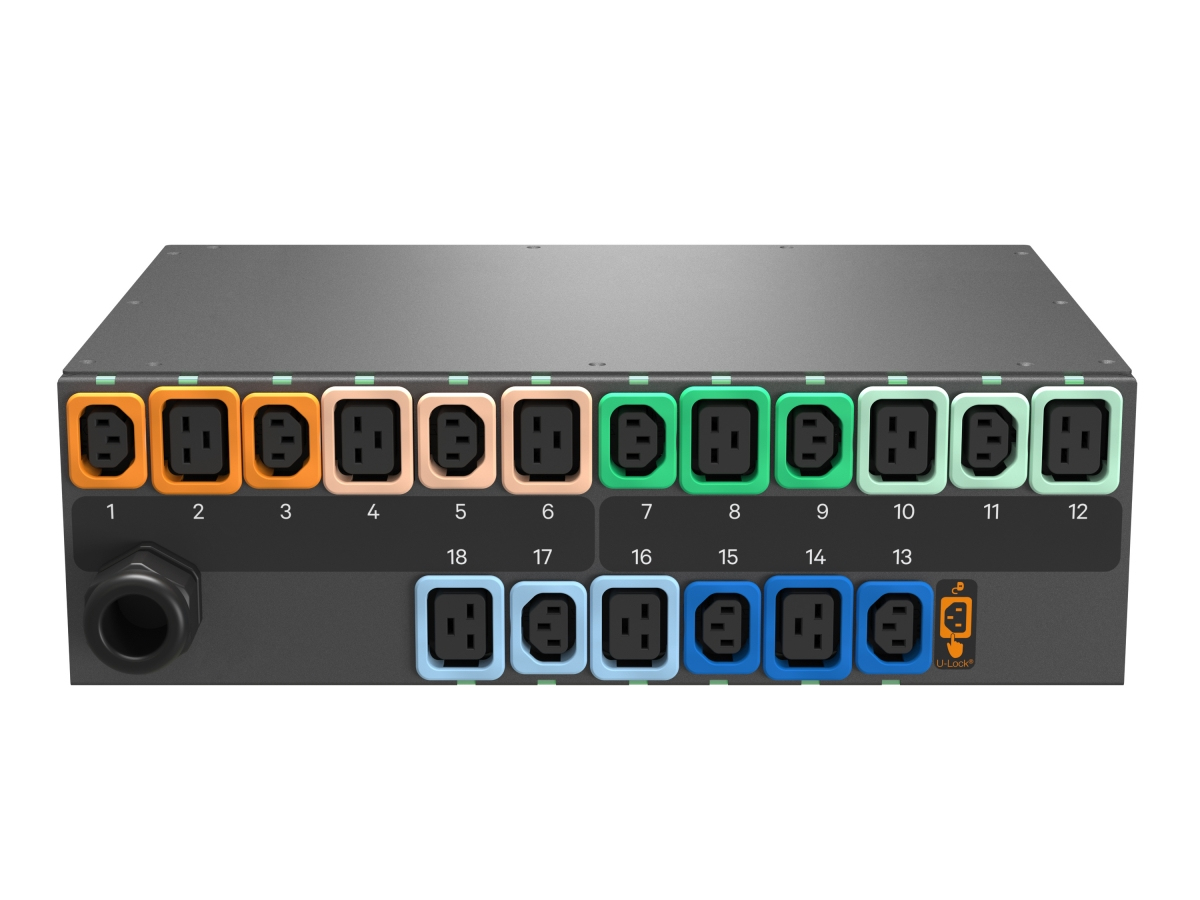

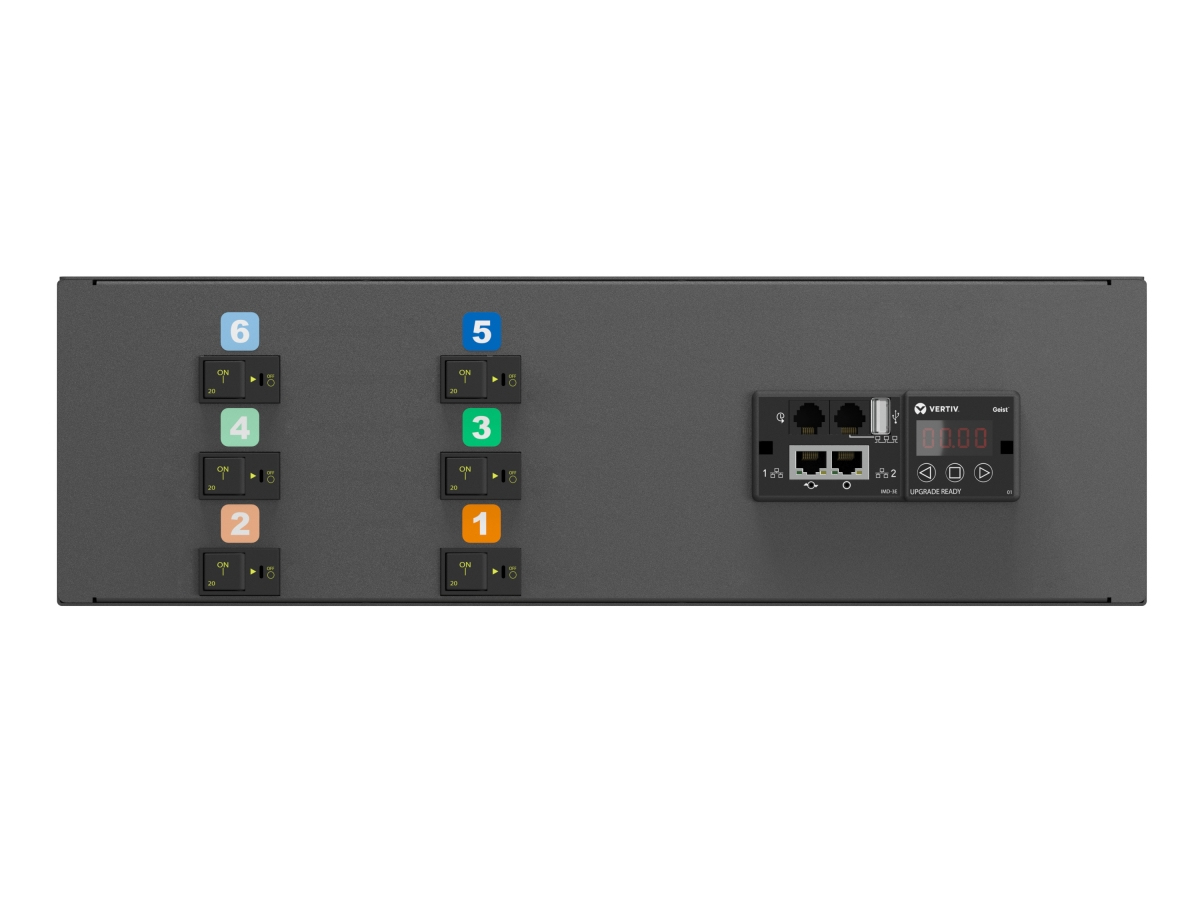

MGR3E3R1-18P993-3PS56B2H10-S power distribution unit (PDU) 18 AC outlet(s) 3U Black
Model MGR3E3R1-18P993-3PS56B2H10-SPart no. GR30020L
29 specifications
- Power22000 W
- TypeThree-phase
- Weight9.98 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity18 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 9.98 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 18 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MGR3E3R1-18P993-3PS56B2H10-S
- Part number
- GR30020L
- Also known as
- Vertiv MGR3E3R1-18P993-3PS56B2H10-S power distribution unit (PDU) 18 AC outlet(s) 3U Black
Specifications
29 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 3U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C18 coupler |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 22000 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 305 mm |
| Height | 131 mm |
| Weight | 9.98 kg |
