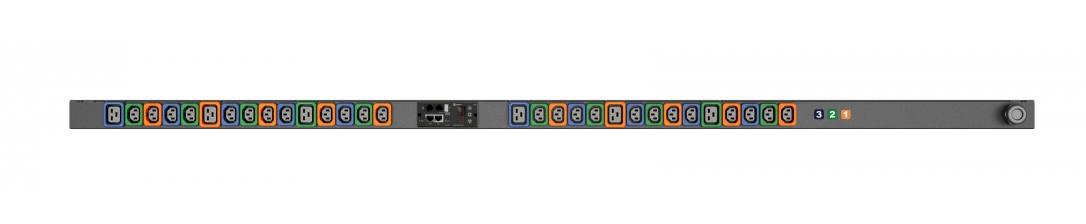

Geist MG03E4B0-30PN63-2PS56B2A10-S-A-RC power distribution unit (PDU) 30 AC outlet(s) Black
Model MG03E4B0-30PN63-2PS56B2A10-S-A-RCPart no. VP4G8003EAN 4061471339811
33 specifications
- Power11000 W
- TypeThree-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity30 AC outlet(s)
- Daisy chainYes
Overview
- Power
- 11000 W
- Type
- Three-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 30 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MG03E4B0-30PN63-2PS56B2A10-S-A-RC
- Part number
- VP4G8003
- EAN / UPC
- 4061471339811
- Also known as
- Vertiv Geist MG03E4B0-30PN63-2PS56B2A10-S-A-RC power distribution unit (PDU) 30 AC outlet(s) Black
Specifications
33 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240/346-415V WYE |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Output voltage | 230 V |
| Maximum power | 11000 W |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, UKCA |
| Certification | ANSI C12.1, IEC 62053-21, IEC 62368-1, EN 55032, EN 55035 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 51 mm |
| Height | 1683 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
