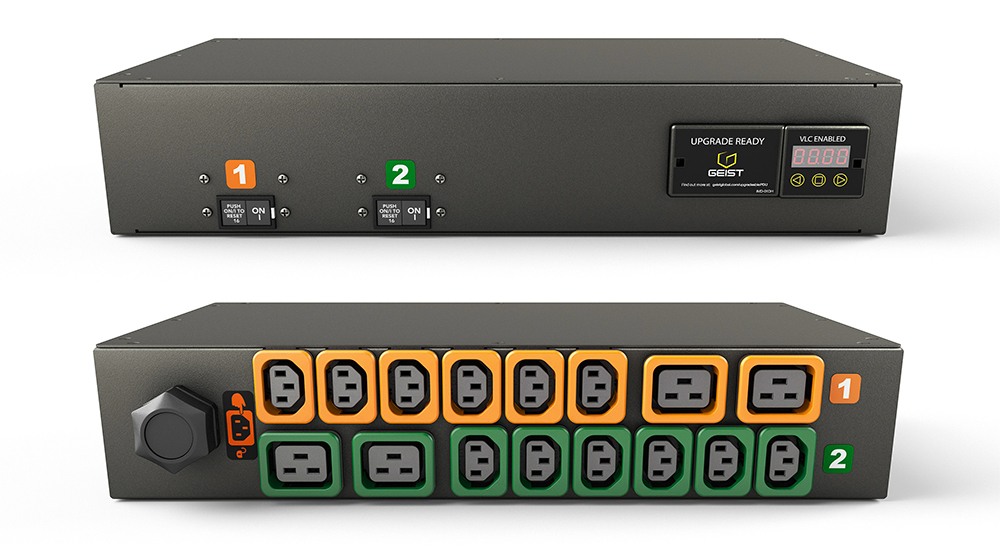

MG01D2R1-16PB43-3PS6C2H10-S power distribution unit (PDU) 16 AC outlet(s) 2U Black
Model MG01D2R1-16PB43-3PS6C2H10-SPart no. GI10026LEAN 4061471341517
24 specifications
- Power7300 W
- Weight6.8 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity16 AC outlet(s)
- Colour-coded outletsYes
Overview
- Power
- 7300 W
- Weight
- 6.8 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 16 AC outlet(s)
- Colour-coded outlets
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MG01D2R1-16PB43-3PS6C2H10-S
- Part number
- GI10026L
- EAN / UPC
- 4061471341517
- Also known as
- Vertiv MG01D2R1-16PB43-3PS6C2H10-S power distribution unit (PDU) 16 AC outlet(s) 2U Black
Specifications
24 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | Type I |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 7300 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 229 mm |
| Height | 87 mm |
| Weight | 6.8 kg |
| Size (imperial) | 48.3 cm (19") |
