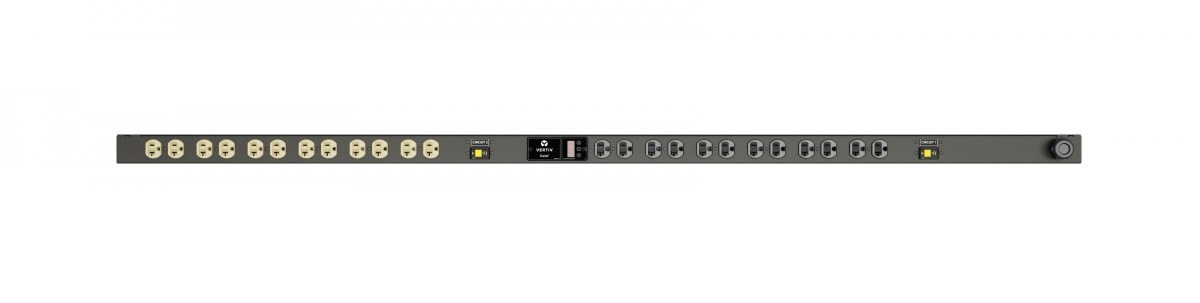

I10055 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model I10055
20 specifications
- Power2800 W
- Weight6.8 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity24 AC outlet(s)
- Cable length3 m
Overview
- Power
- 2800 W
- Weight
- 6.8 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- I10055
- Part number
- I10055
- Also known as
- Vertiv I10055 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
20 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L5-30P |
| AC outlet types | NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 30 A |
| Maximum power | 2800 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Certification | RoHS Compliant, FCC Part 15 Class A Conformance, UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.8 mm |
| Depth | 50.8 mm |
| Height | 1683 mm |
| Weight | 6.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
