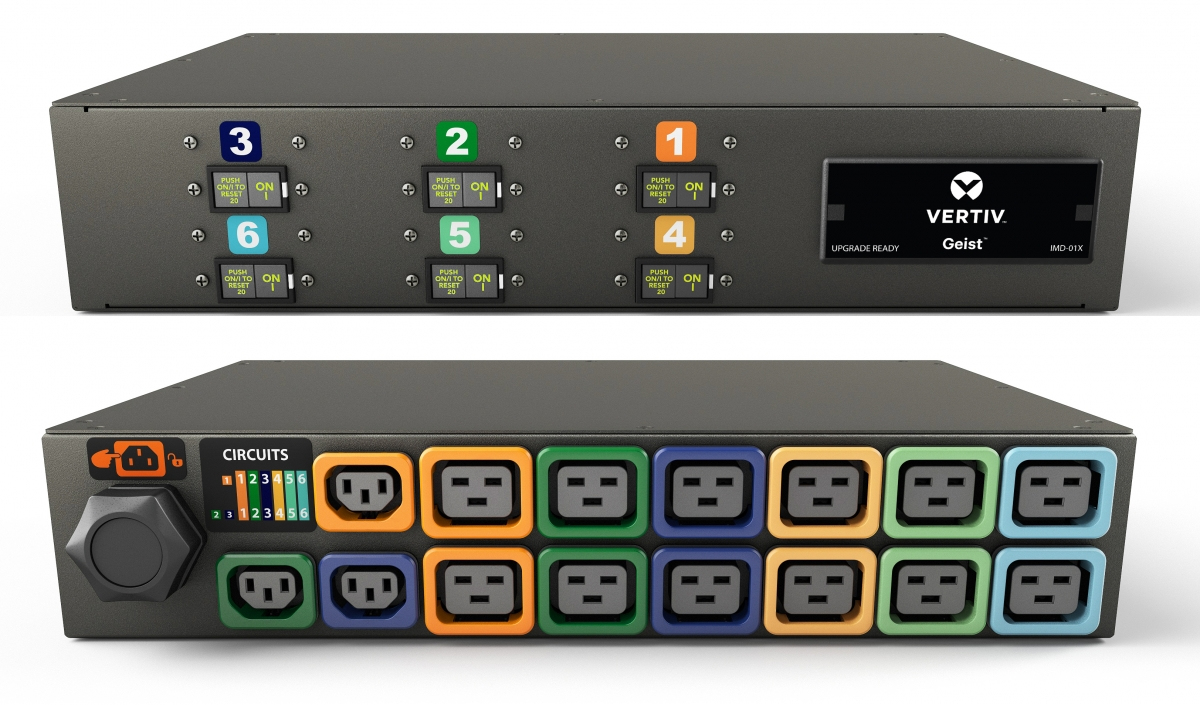

I10020L power distribution unit (PDU) 15 AC outlet(s) 2U Black
Model I10020L
20 specifications
- Power17200 W
- TypeThree-phase
- Weight13.2 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity15 AC outlet(s)
Overview
- Power
- 17200 W
- Type
- Three-phase
- Weight
- 13.2 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 15 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- I10020L
- Part number
- I10020L
- Also known as
- Vertiv I10020L power distribution unit (PDU) 15 AC outlet(s) 2U Black
Specifications
20 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 15 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 60 A |
| Maximum power | 17200 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Certification | RoHS Compliant, FCC Part 15 Class A Conformance, UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 304.8 mm |
| Height | 86 mm |
| Weight | 13.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
