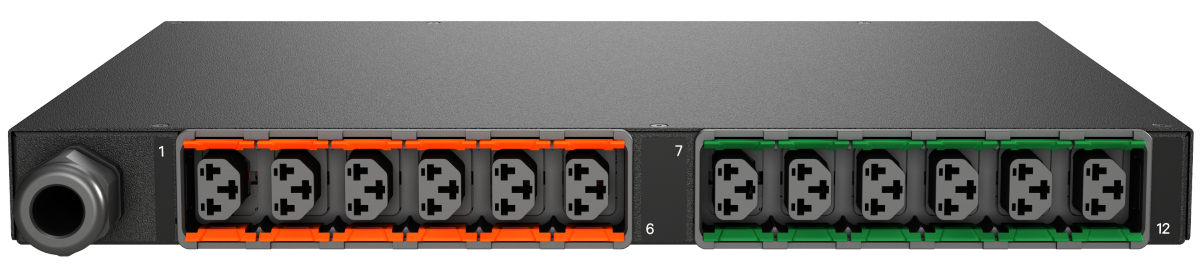

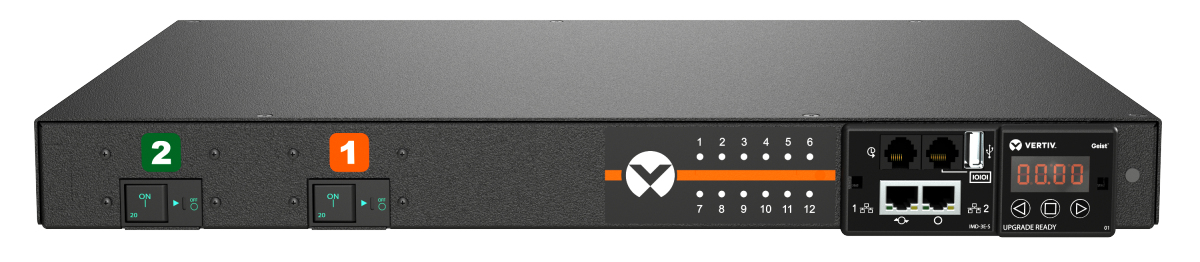

Geist GR30202 power distribution unit (PDU) 12 AC outlet(s) Black, Green, Orange
Model GR30202EAN 4061471339644
28 specifications
- Power7300 W
- Weight5.44 kg
- ColourBlack, Green, Orange
- PDU typesMonitored
- AC outlets quantity12 AC outlet(s)
- Daisy chainYes
Overview
- Power
- 7300 W
- Weight
- 5.44 kg
- Colour
- Black, Green, Orange
- PDU types
- Monitored
- AC outlets quantity
- 12 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- GR30202
- Part number
- GR30202
- EAN / UPC
- 4061471339644
- Also known as
- Vertiv Geist GR30202 power distribution unit (PDU) 12 AC outlet(s) Black, Green, Orange
Specifications
28 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black, Green, Orange |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Maximum power | 7300 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EN 55032, EN 55024, RCM, IEC 62368-1, Cم Mark |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 305 mm |
| Height | 44 mm |
| Weight | 5.44 kg |
