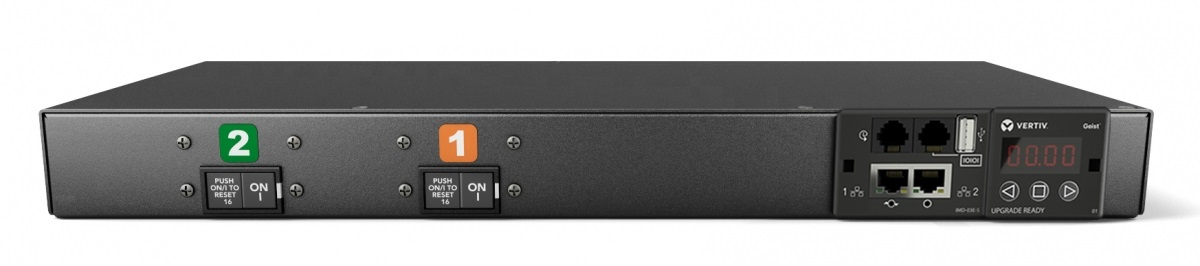

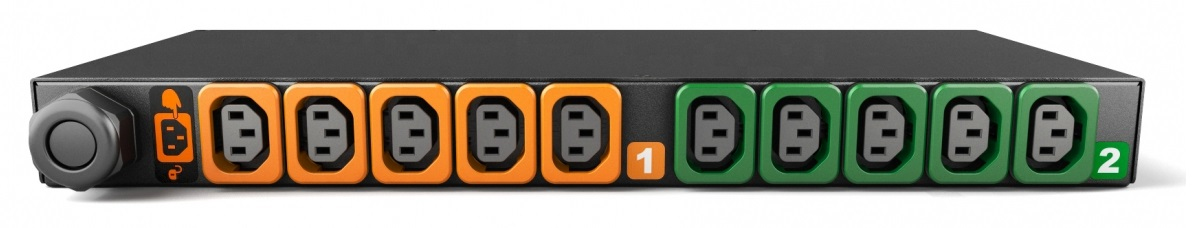

GI30075L power distribution unit (PDU) 10 AC outlet(s) 1U
Model GI30075LEAN 4061471340398
27 specifications
- Power7300 W
- Weight5.44 kg
- PDU typesMonitored
- AC outlets quantity10 AC outlet(s)
- Daisy chainYes
- MonitoringCurrent, Power, Voltage
Overview
- Power
- 7300 W
- Weight
- 5.44 kg
- PDU types
- Monitored
- AC outlets quantity
- 10 AC outlet(s)
- Daisy chain
- Yes
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- GI30075L
- Part number
- GI30075L
- EAN / UPC
- 4061471340398
- Also known as
- Vertiv GI30075L power distribution unit (PDU) 10 AC outlet(s) 1U
Specifications
27 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Maximum power | 7300 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 216 mm |
| Height | 44 mm |
| Weight | 5.44 kg |
| Size (imperial) | 48.3 cm (19") |
