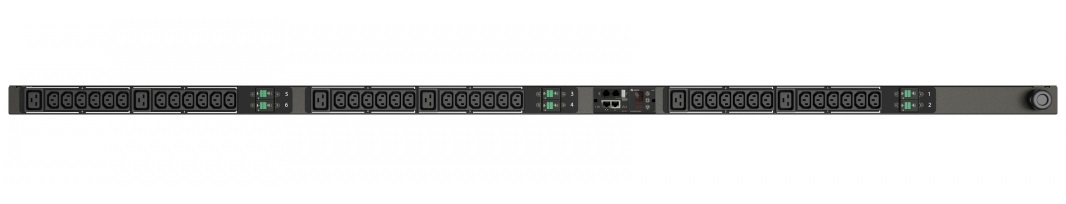

GI30041 power distribution unit (PDU) 42 AC outlet(s) Black
Model GI30041EAN 4061471340329
24 specifications
- Power22000 W
- TypeThree-phase
- Weight7.71 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity42 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 7.71 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 42 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- GI30041
- Part number
- GI30041
- EAN / UPC
- 4061471340329
- Also known as
- Vertiv GI30041 power distribution unit (PDU) 42 AC outlet(s) Black
Specifications
24 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Maximum power | 22000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1829 mm |
| Depth | 51 mm |
| Height | 85 mm |
| Weight | 7.71 kg |
