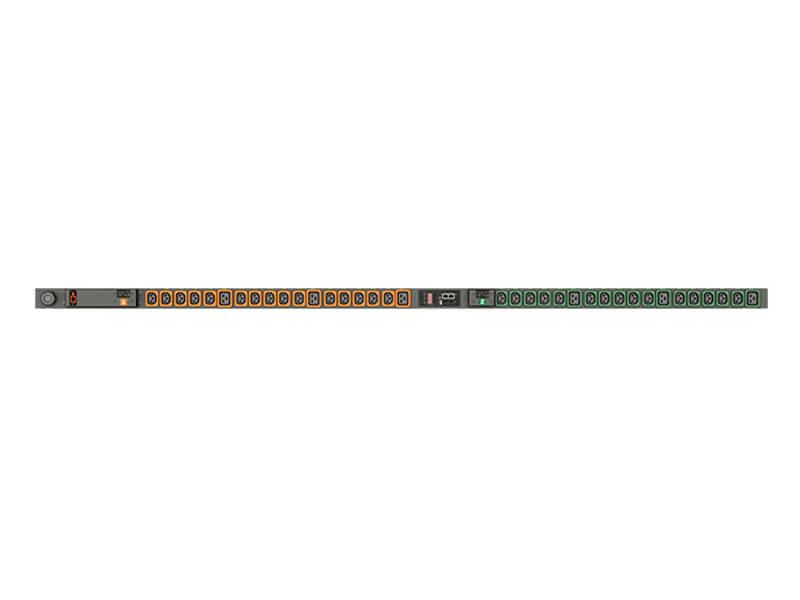

Geist Switched
Model Geist SwitchedPart no. GS30001LEAN 4061471342255
24 specifications
- Power11000 W
- TypeThree-phase
- ColourBlack
- PDU typesMonitored, Switched
- AC outlets quantity24 AC outlet(s)
- Reset buttonYes
Overview
- Power
- 11000 W
- Type
- Three-phase
- Colour
- Black
- PDU types
- Monitored, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Reset button
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist Switched
- Part numbers
- GS30001L, GS30002L
- EAN / UPC
- 4061471342255
- Also known as
- Vertiv Geist Switched power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
24 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored, Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240/346-415 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 230 V |
| Maximum input current per phase | 16 A |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1683 mm |
| Depth | 51 mm |
| Height | 66 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.16 kg |
