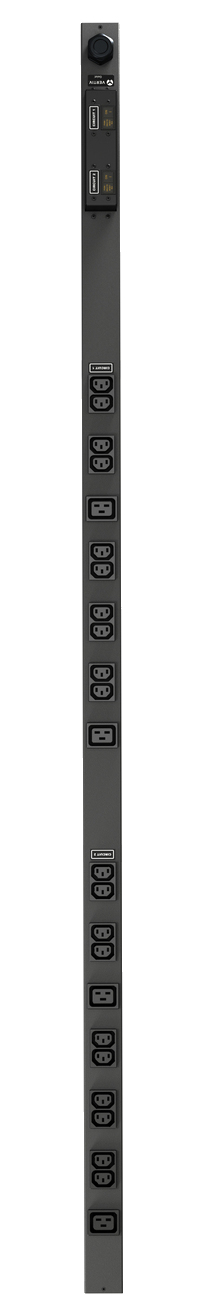

Vertiv Geist rPDU, basic, 0U, input IEC60309 230V 32A, outputs (20)C13 | (4)C19

Vertiv Geist rPDU, basic, 0U, input IEC60309 230V 32A, outputs (20)C13 | (4)C19

Model Geist rPDU, basic, 0U, input IEC60309 230V 32A, outputs (20)C13 | (4)C19Part no. VP7553EAN 767041026153

26 specifications

TypeSingle-phase
Weight5.4 kg
ColourBlack
PDU typesBasic
AC outlets quantity24 AC outlet(s)
LED indicatorsNo

See all specifications

Overview

Type: Single-phase
Weight: 5.4 kg
Colour: Black
PDU types: Basic
AC outlets quantity: 24 AC outlet(s)
LED indicators: No

Brand: Vertiv
Category: Power Distribution Units (PDUs)
Model: Geist rPDU, basic, 0U, input IEC60309 230V 32A, outputs (20)C13 | (4)C19
Part number: VP7553
EAN / UPC: 767041026153, 4061471339033, 5704174036722
Also known as: Vertiv Geist rPDU, basic, 0U, input IEC60309 230V 32A, outputs (20)C13 | (4)C19 power distribution unit (PDU) 24 AC outlet(s) Black

Specifications

26 specifications in 8 groups

Design

Specification	Value
PDU types	Basic
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler, C19 coupler
Output connections	20 x C13 & 4 x C19

Features

Specification	Value
LED indicators	No
Cable length	3 m

Power

Specification	Value
Nominal input voltage	230 V
AC input frequency	50 Hz
Maximum current	32 A
Load capacity	7300 VA

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, RoHS, CB

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C

Weight & dimensions

Specification	Value
Width	1683 mm
Depth	51 mm
Height	51 mm
Weight	5.4 kg

Packaging data

Specification	Value
Package weight	6.35 kg
Package width	1829 mm
Package depth	223 mm
Package height	159 mm
