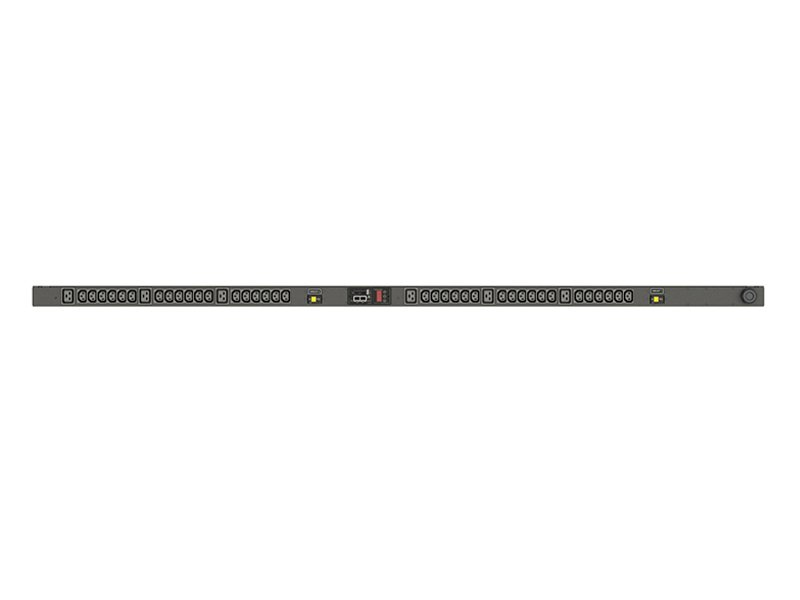

Geist Monitored Outlet Level EC
Model Geist Monitored Outlet Level ECPart no. GR30016LEAN 4061471342415
24 specifications
- Power7300 W
- TypeSingle-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity24 AC outlet(s)
- Reset buttonYes
Overview
- Power
- 7300 W
- Type
- Single-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 24 AC outlet(s)
- Reset button
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist Monitored Outlet Level EC
- Part numbers
- GR30016L, GR30019L, GS30018L, GR30002L, GR30009L, GR30010L +12 more
- EAN / UPC
- 4061471342415, 4061471342064, 4061471342132, 4061471342149 +13 more
- Also known as
- Vertiv Geist Monitored Outlet Level EC power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
24 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 7300 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1683 mm |
| Depth | 51 mm |
| Height | 66 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.07 kg |
