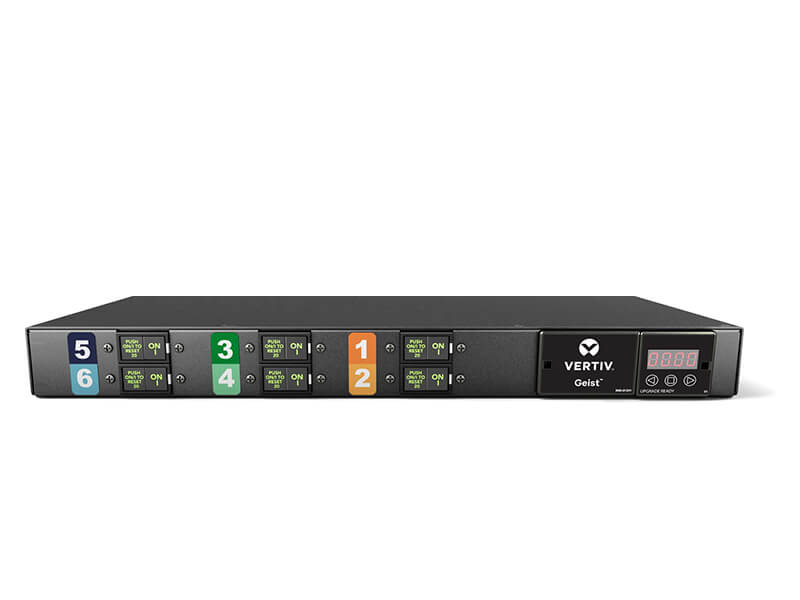

Geist Metered
Model Geist MeteredPart no. G2244EAN 5715063286067
22 specifications
- Power3600 W
- TypeSingle-phase
- ColourBlack
- PDU typesMetered
- AC outlets quantity8 AC outlet(s)
- Cable length3 m
Overview
- Power
- 3600 W
- Type
- Single-phase
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 8 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist Metered
- Part numbers
- G2244, G1012, G1223, G2243, G2232, G1035 +12 more
- EAN / UPC
- 5715063286067, 4061471340589, 4061471341227, 4061471341210 +8 more
- Also known as
- Vertiv Geist Metered power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Specifications
22 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Output voltage | 230 V |
| Maximum power | 3600 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 47 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.36 kg |
