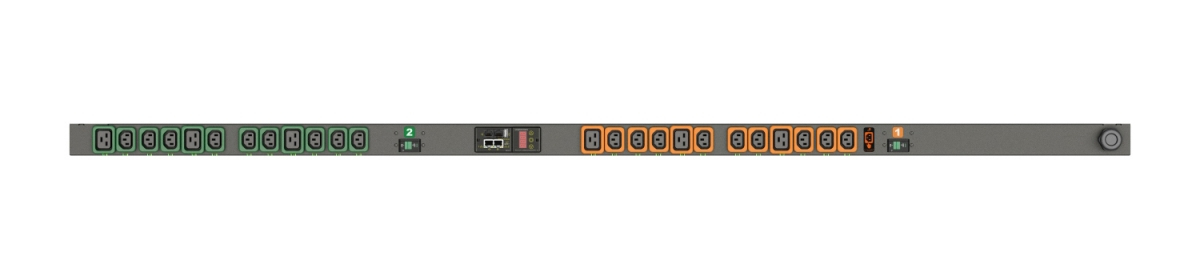

Geist GU30018L
Model Geist GU30018LPart no. GU30018L
29 specifications
- Power7300 W
- Weight9.07 kg
- ColourBlack
- PDU typesManaged, Monitored, Switched
- AC outlets quantity24 AC outlet(s)
- Daisy chainYes
Overview
- Power
- 7300 W
- Weight
- 9.07 kg
- Colour
- Black
- PDU types
- Managed, Monitored, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist GU30018L
- Part number
- GU30018L
- Also known as
- Vertiv Geist GU30018L power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
29 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Managed, Monitored, Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Maximum power | 7300 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EN55032, EN55024, IEC 60950-1, RCM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1683 mm |
| Depth | 66 mm |
| Height | 51 mm |
| Weight | 9.07 kg |
