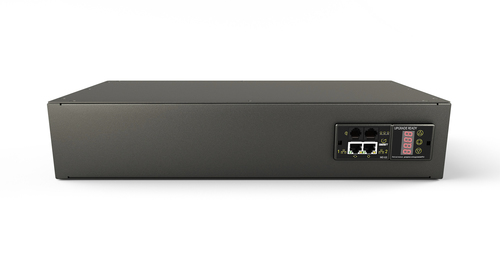

Geist GI30107L
Model Geist GI30107LPart no. GI30107LEAN 4061471340480
25 specifications
- Power11000 W
- TypeThree-phase
- Weight6.35 kg
- ColourBlack, Blue, Green, Orange
- PDU typesMonitored
- AC outlets quantity18 AC outlet(s)
Overview
- Power
- 11000 W
- Type
- Three-phase
- Weight
- 6.35 kg
- Colour
- Black, Blue, Green, Orange
- PDU types
- Monitored
- AC outlets quantity
- 18 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist GI30107L
- Part number
- GI30107L
- EAN / UPC
- 4061471340480
- Also known as
- Vertiv Geist GI30107L power distribution unit (PDU) 18 AC outlet(s) 2U Black, Blue, Green, Orange
Specifications
25 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 2U |
| Product colour | Black, Blue, Green, Orange |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EN 55032,EN 55024, IEC 60950-1, RCM, UL, c-UL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 153 mm |
| Height | 87 mm |
| Weight | 6.35 kg |
