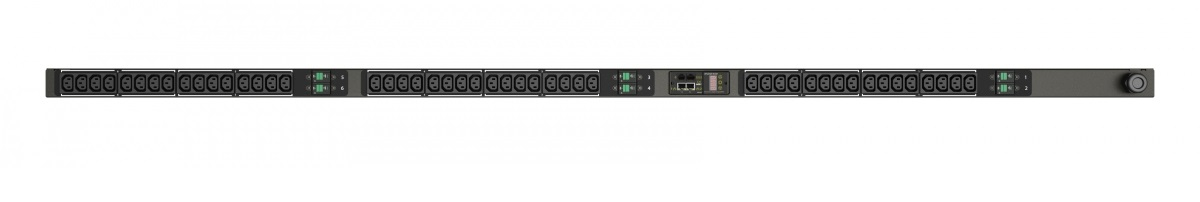

Geist GI30045
Model Geist GI30045Part no. GI30045EAN 4061471340350
27 specifications
- Power22000 W
- TypeThree-phase
- Weight8.62 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity48 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 8.62 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 48 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist GI30045
- Part number
- GI30045
- EAN / UPC
- 4061471340350
- Also known as
- Vertiv Geist GI30045 power distribution unit (PDU) 48 AC outlet(s) Black
Specifications
27 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 48 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Maximum power | 22000 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EN55032, EN55024, IEC 60950-1, RCM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1932 mm |
| Depth | 58 mm |
| Height | 51 mm |
| Weight | 8.62 kg |
