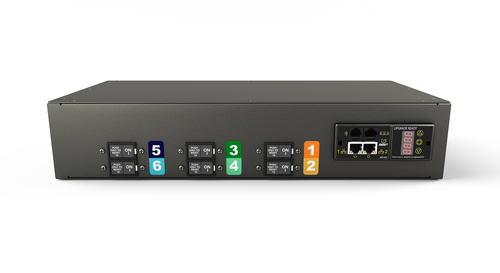

Geist GI30030L
Model Geist GI30030LPart no. GI30030LEAN 4061471340275
29 specifications
- Power22000 W
- TypeThree-phase
- Weight7.26 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity12 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 7.26 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 12 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Geist GI30030L
- Part number
- GI30030L
- EAN / UPC
- 4061471340275
- Also known as
- Vertiv Geist GI30030L power distribution unit (PDU) 12 AC outlet(s) 2U Black
Specifications
29 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C19 coupler |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Maximum power | 22000 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EN 55032, EN 55024, IEC 60950-1, RCM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 229 mm |
| Height | 87 mm |
| Weight | 7.26 kg |
