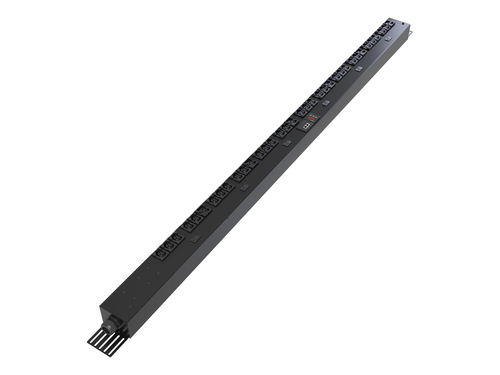

PowerGo Switched rPDU | 0U | 230/400V WYE | 32A | (30) Manual Lock IEC C13, (6) Manual Lock IEC C19 | 22kW | 50/60Hz | 3P+N+E (IP44) | EP5G90A0
Model EP5G90A2EAN 4061471345560
21 specifications
- Power22000 W
- TypeThree-phase
- Weight16.5 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity36 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 16.5 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 36 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- EP5G90A2
- Part number
- EP5G90A2
- EAN / UPC
- 4061471345560
- Also known as
- Vertiv PowerGo Switched rPDU | 0U | 230/400V WYE | 32A | (30) Manual Lock IEC C13, (6) Manual Lock IEC C19 | 22kW | 50/60Hz | 3P+N+E (IP44) | EP5G90A0
Specifications
21 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 - 400 V |
| Maximum current | 32 A |
| Maximum power | 22000 W |
Certificates
| Specification | Value |
|---|---|
| Certification | Vertiv PowerGo rack PDU,Switched (unit Level), 0U, IEC6009, 230/400V, 32A, outlets (30)C13 (6)C19 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 77 mm |
| Height | 1905 mm |
| Weight | 16.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
