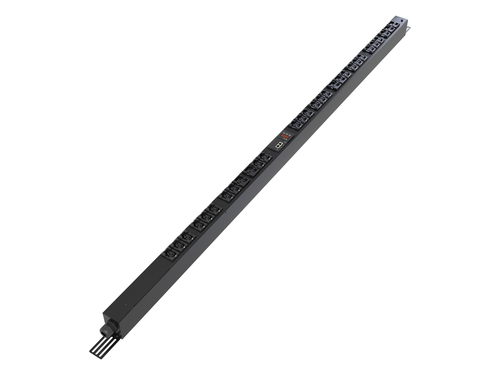

PowerGo Switched rPDU | 0U | 230/400V WYE| 16A | (24) Manual Lock IEC C13, (6) Manual Lock IEC C19 | 11 kW | 50/60Hz | 3P+N+E (IP44) | EP5G80A1
Model EP5G80A1EAN 4061471345539
21 specifications
- Power11000 W
- TypeThree-phase
- Weight12.5 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity30 AC outlet(s)
Overview
- Power
- 11000 W
- Type
- Three-phase
- Weight
- 12.5 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 30 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- EP5G80A1
- Part number
- EP5G80A1
- EAN / UPC
- 4061471345539
- Also known as
- Vertiv PowerGo Switched rPDU | 0U | 230/400V WYE| 16A | (24) Manual Lock IEC C13, (6) Manual Lock IEC C19 | 11 kW | 50/60Hz | 3P+N+E (IP44) | EP5G80A1
Specifications
21 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 - 400 V |
| Maximum current | 16 A |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55040, ROHS (EMC only),S-Mark |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 77 mm |
| Height | 1828 mm |
| Weight | 12.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
