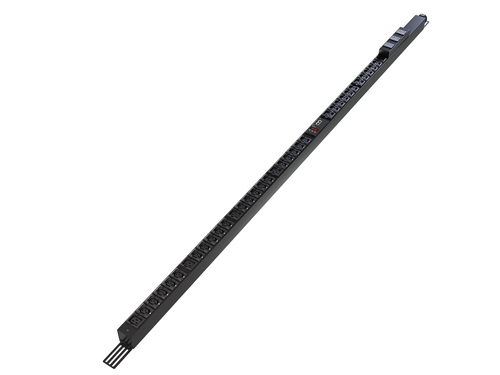

PowerGo Power(xxxx) Monitored PDU|0U|3P+N+E (IP44)| 32A|30 C13, 6 C19
Model EP4G90A1EAN 4061471343696
22 specifications
- Power22000 W
- TypeThree-phase
- Weight11.5 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity36 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 11.5 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 36 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- EP4G90A1
- Part number
- EP4G90A1
- EAN / UPC
- 4061471343696
- Also known as
- Vertiv PowerGo Power(xxxx) Monitored PDU|0U|3P+N+E (IP44)| 32A|30 C13, 6 C19
Specifications
22 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 1U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Management protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 346 - 415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 32 A |
| Maximum power | 22000 W |
| Power protection features | Over current |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 2050 mm |
| Height | 51 mm |
| Weight | 11.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
