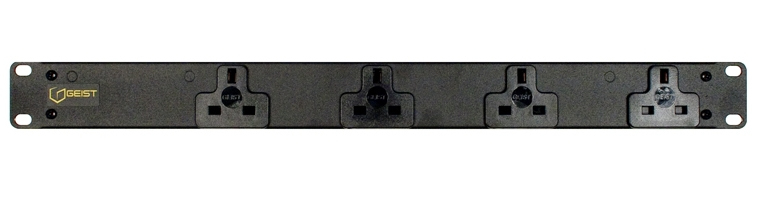

EGXPRN042-103UKLPS6-IP44 power distribution unit (PDU) 4 AC outlet(s) Black
Model EGXPRN042-103UKLPS6-IP44Part no. G2166EAN 4061471340947
18 specifications
- Power7300 W
- Weight1.81 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity4 AC outlet(s)
- Cable length3 m
Overview
- Power
- 7300 W
- Weight
- 1.81 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 4 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- EGXPRN042-103UKLPS6-IP44
- Part number
- G2166
- EAN / UPC
- 4061471340947
- Also known as
- Vertiv EGXPRN042-103UKLPS6-IP44 power distribution unit (PDU) 4 AC outlet(s) Black
Specifications
18 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | BS 1363 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Maximum power | 7300 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 50 mm |
| Height | 44 mm |
| Weight | 1.81 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
