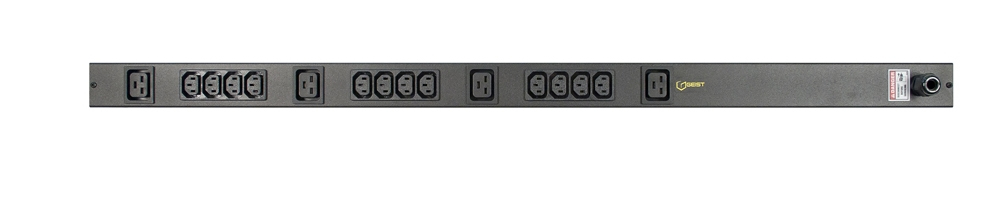

EGVHVAN162-102IB4PS6-IP44 power distribution unit (PDU) 16 AC outlet(s) Black
Model EGVHVAN162-102IB4PS6-IP44Part no. G2201EAN 4061471341104
18 specifications
- Power3600 W
- Weight4.08 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity16 AC outlet(s)
- Cable length3 m
Overview
- Power
- 3600 W
- Weight
- 4.08 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 16 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- EGVHVAN162-102IB4PS6-IP44
- Part number
- G2201
- EAN / UPC
- 4061471341104
- Also known as
- Vertiv EGVHVAN162-102IB4PS6-IP44 power distribution unit (PDU) 16 AC outlet(s) Black
Specifications
18 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Maximum power | 3600 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 51 mm |
| Height | 978 mm |
| Weight | 4.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
