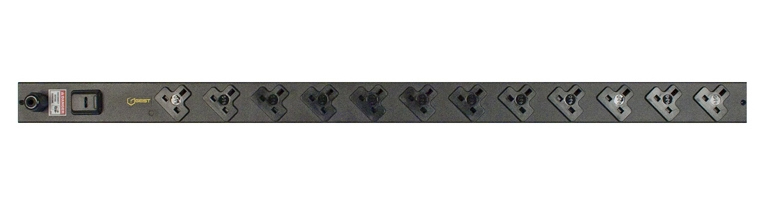

EGVHVAB122-104UKRUK-V power distribution unit (PDU) 12 AC outlet(s) Black
Model EGVHVAB122-104UKRUK-VPart no. G2108
19 specifications
- Power2900 W
- Weight4.08 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity12 AC outlet(s)
- Cable length3 m
Overview
- Power
- 2900 W
- Weight
- 4.08 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 12 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- EGVHVAB122-104UKRUK-V
- Part number
- G2108
- Also known as
- Vertiv EGVHVAB122-104UKRUK-V power distribution unit (PDU) 12 AC outlet(s) Black
Specifications
19 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | Type G |
| AC outlet types | BS 1363 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 13 A |
| Maximum power | 2900 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 50 mm |
| Height | 978 mm |
| Weight | 4.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
