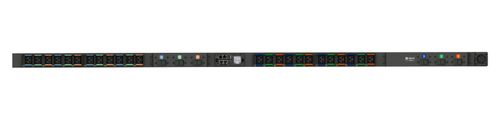

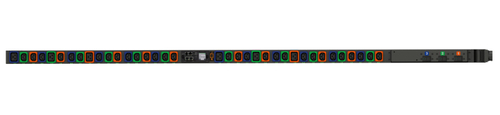

Vertiv DUR5MGW1-24CF17-1S02A9K00-S-A-RC power distribution unit (PDU) 24 AC outlet(s) Black

Vertiv DUR5MGW1-24CF17-1S02A9K00-S-A-RC power distribution unit (PDU) 24 AC outlet(s) Black

Model DUR5MGW1-24CF17-1S02A9K00-S-A-RCPart no. VP6UU0A1

17 specifications

Power11000 W
Weight12.2 kg
ColourBlack
PDU typesMonitored
AC outlets quantity24 AC outlet(s)
AC input frequency50 - 60 Hz

See all specifications

Overview

Power: 11000 W
Weight: 12.2 kg
Colour: Black
PDU types: Monitored
AC outlets quantity: 24 AC outlet(s)
AC input frequency: 50 - 60 Hz

Brand: Vertiv
Category: Power Distribution Units (PDUs)
Model: DUR5MGW1-24CF17-1S02A9K00-S-A-RC
Part number: VP6UU0A1
Also known as: Vertiv DUR5MGW1-24CF17-1S02A9K00-S-A-RC power distribution unit (PDU) 24 AC outlet(s) Black

Specifications

17 specifications in 5 groups

Design

Specification	Value
PDU types	Monitored
Mounting	Vertical
Product colour	Black
Display	LCD

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB ports quantity	1

Management features

Specification	Value
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Power

Specification	Value
AC input frequency	50 - 60 Hz
Maximum current	16 A
Maximum power	11000 W

Weight & dimensions

Specification	Value
Width	51 mm
Depth	1829 mm
Height	66 mm
Weight	12.2 kg
