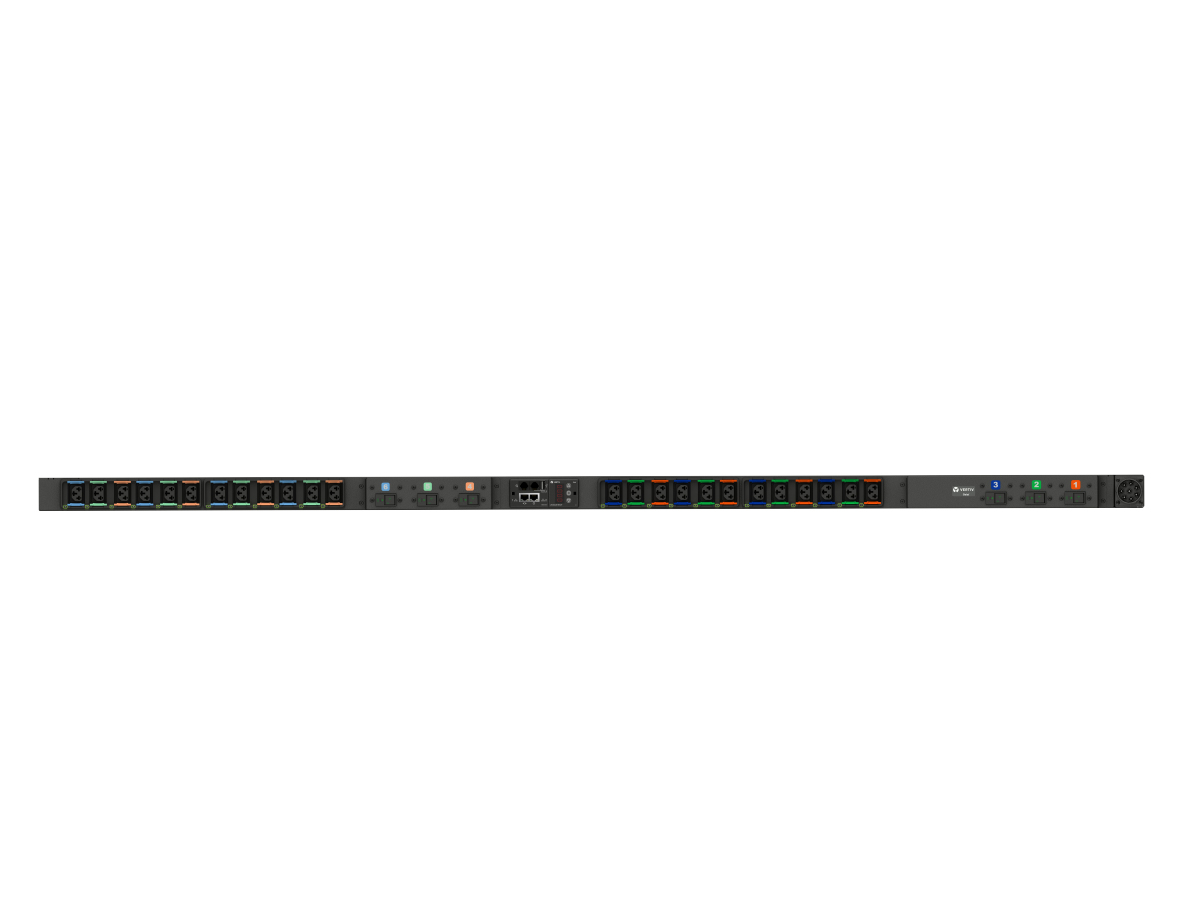

Geist DUR3EGB1-24CF17-2S02A9K00-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model DUR3EGB1-24CF17-2S02A9K00-S-APart no. VP6UV003
22 specifications
- Weight12.2 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity24 AC outlet(s)
- LED indicatorsYes
- MonitoringCurrent, Power, Voltage
Overview
- Weight
- 12.2 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 24 AC outlet(s)
- LED indicators
- Yes
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- DUR3EGB1-24CF17-2S02A9K00-S-A
- Part number
- VP6UV003
- Also known as
- Vertiv Geist DUR3EGB1-24CF17-2S02A9K00-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
22 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Firmware upgradeable via | USB |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 240/415 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Number of phases | 3 |
| Power protection features | Over current |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1683 mm |
| Weight | 12.2 kg |
