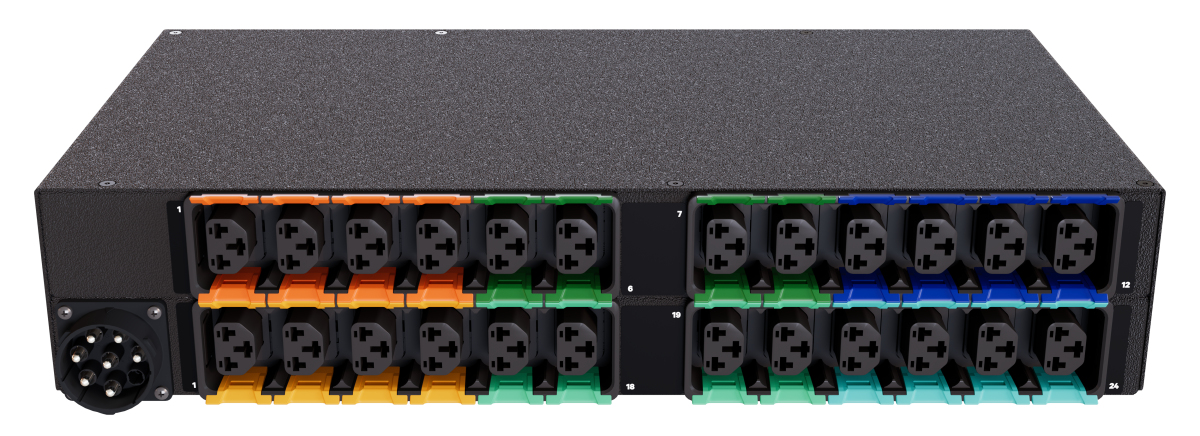

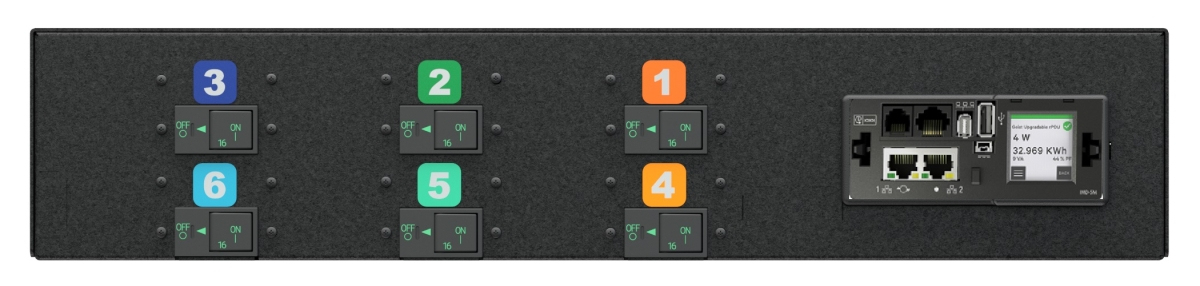

DU05M2R1-24CF17-2S02A9H00-S power distribution unit (PDU) 24 AC outlet(s) 2U Black
Model DU05M2R1-24CF17-2S02A9H00-SPart no. VP4UV2A1
22 specifications
- Power22000 W
- TypeThree-phase
- Weight7.26 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity24 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 7.26 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 24 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- DU05M2R1-24CF17-2S02A9H00-S
- Part number
- VP4UV2A1
- Also known as
- Vertiv DU05M2R1-24CF17-2S02A9H00-S power distribution unit (PDU) 24 AC outlet(s) 2U Black
Specifications
22 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50/60 Hz |
| Maximum current | 63 A |
| Maximum power | 22000 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UL, cUL, UKCA, RoHS, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 229 mm |
| Height | 87 mm |
| Weight | 7.26 kg |
