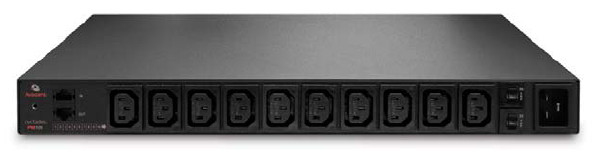

Cyclades PM10i-32A, Horizontal
Model Cyclades PM10i-32A, HorizontalPart no. ATP3230-202
16 specifications
- Weight5 kg
- ColourBlack
- Rack capacity1U
- Input connection typeIEC309
- Maximum current32 A
- Operating temperature (T-T)-40 - 85 °C
Overview
- Weight
- 5 kg
- Colour
- Black
- Rack capacity
- 1U
- Input connection type
- IEC309
- Maximum current
- 32 A
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Cyclades PM10i-32A, Horizontal
- Part number
- ATP3230-202
- Also known as
- Vertiv Cyclades PM10i-32A, Horizontal power distribution unit (PDU) 1U Black
Specifications
16 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC309 |
| Output connections | (10)IEC320-C13 |
| I/O ports | 2 x RS-232 |
Power
| Specification | Value |
|---|---|
| Maximum current | 32 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CSA (UL), EN55022, A (CE), EN55024, EN60950, C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | 10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 203.2 mm |
| Height | 44.5 mm |
| Weight | 5 kg |
| Weight (imperial) | 5.03 kg (11.1 lbs) |
