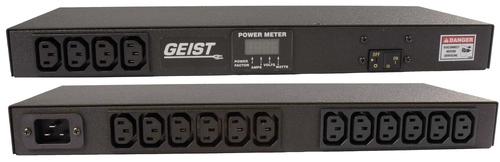

Geist BREC160-0020/16 power distribution unit (PDU) 16 AC outlet(s) 0U Black
Model BREC160-0020/16Part no. 28052
23 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesMetered
- AC outlets quantity16 AC outlet(s)
- Cable length3 m
- MonitoringPower
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 16 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Power
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- BREC160-0020/16
- Part number
- 28052
- Also known as
- Vertiv Geist BREC160-0020/16 power distribution unit (PDU) 16 AC outlet(s) 0U Black
Specifications
23 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Power |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120/200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Load capacity | 208 VA |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant UL & c-UL Listed 60950 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 165 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.81 kg |
