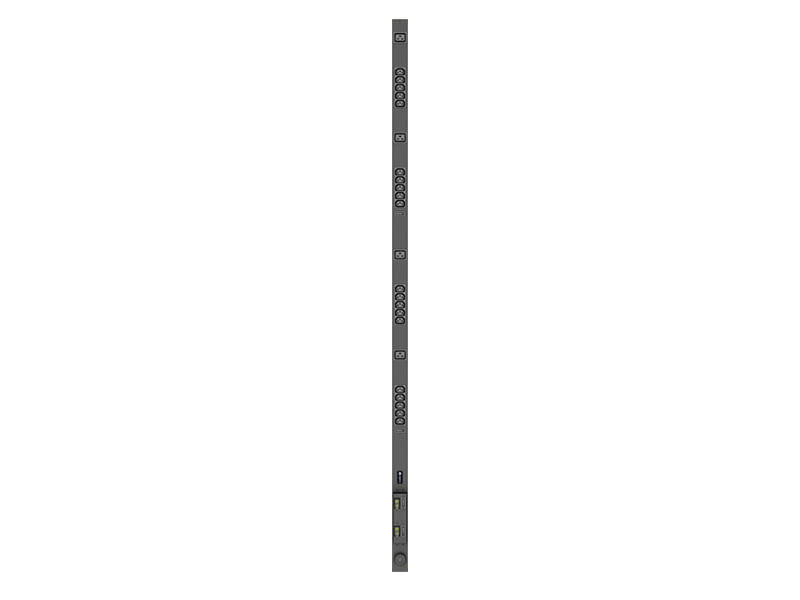

Basic power distribution unit (PDU) 20 AC outlet(s) 0U Black
Model BasicPart no. GI19989EAN 4061471342033
26 specifications
- Power7300 W
- TypeSingle-phase
- Weight6.8 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity20 AC outlet(s)
Overview
- Power
- 7300 W
- Type
- Single-phase
- Weight
- 6.8 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 20 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- Basic
- Part numbers
- GI19989, GI19986, GI19988, GI10057L, GI19987
- EAN / UPC
- 4061471342033, 4061471342002, 4061471342026, 3540260188737 +2 more
- Also known as
- Vertiv Basic power distribution unit (PDU) 20 AC outlet(s) 0U Black
Specifications
26 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 20 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | BS 1363 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Load capacity | 7400 VA |
| Maximum power | 7300 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | - CE Marked - RoHS Compliant & China RoHS - Complies with IEC 60950-1 (CB Certificate Available) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1778 mm |
| Depth | 55 mm |
| Height | 51 mm |
| Weight | 6.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.8 kg |
