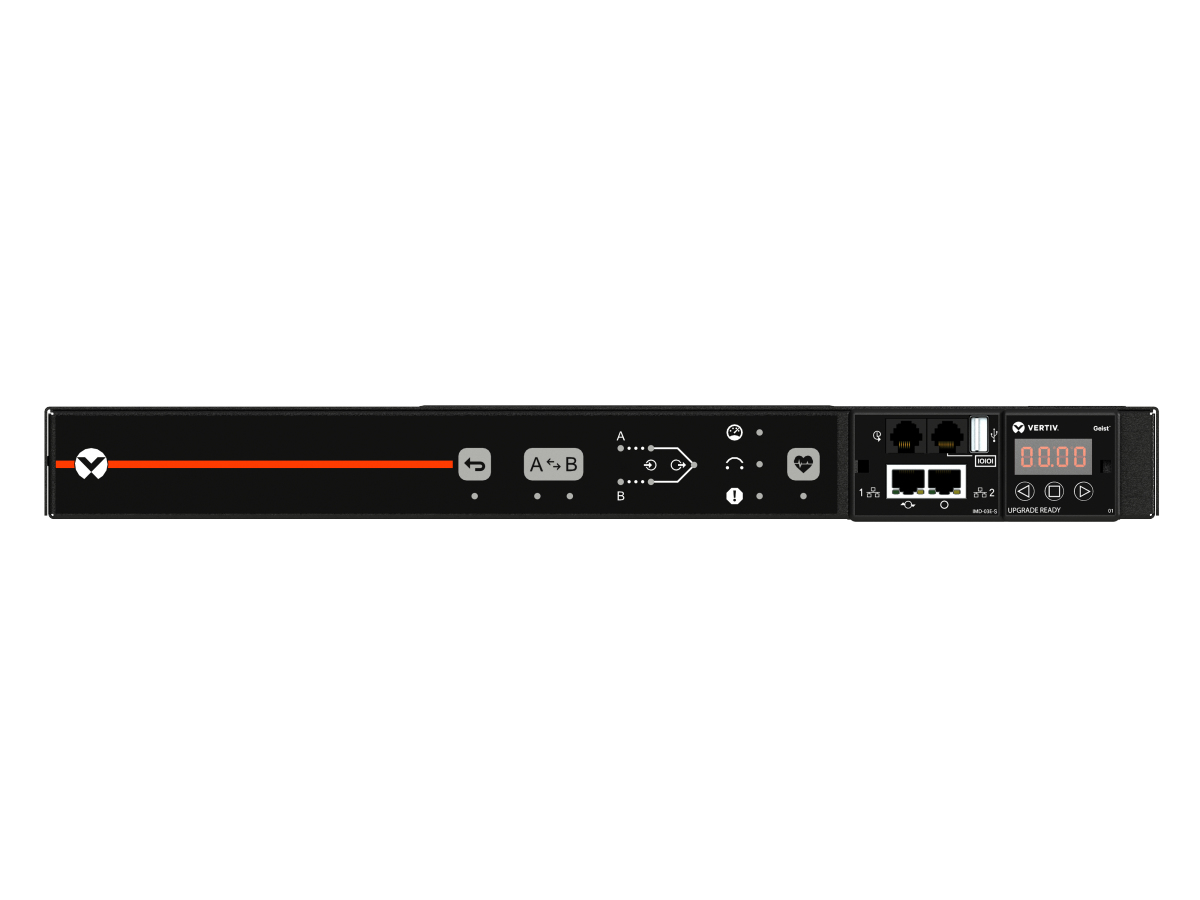

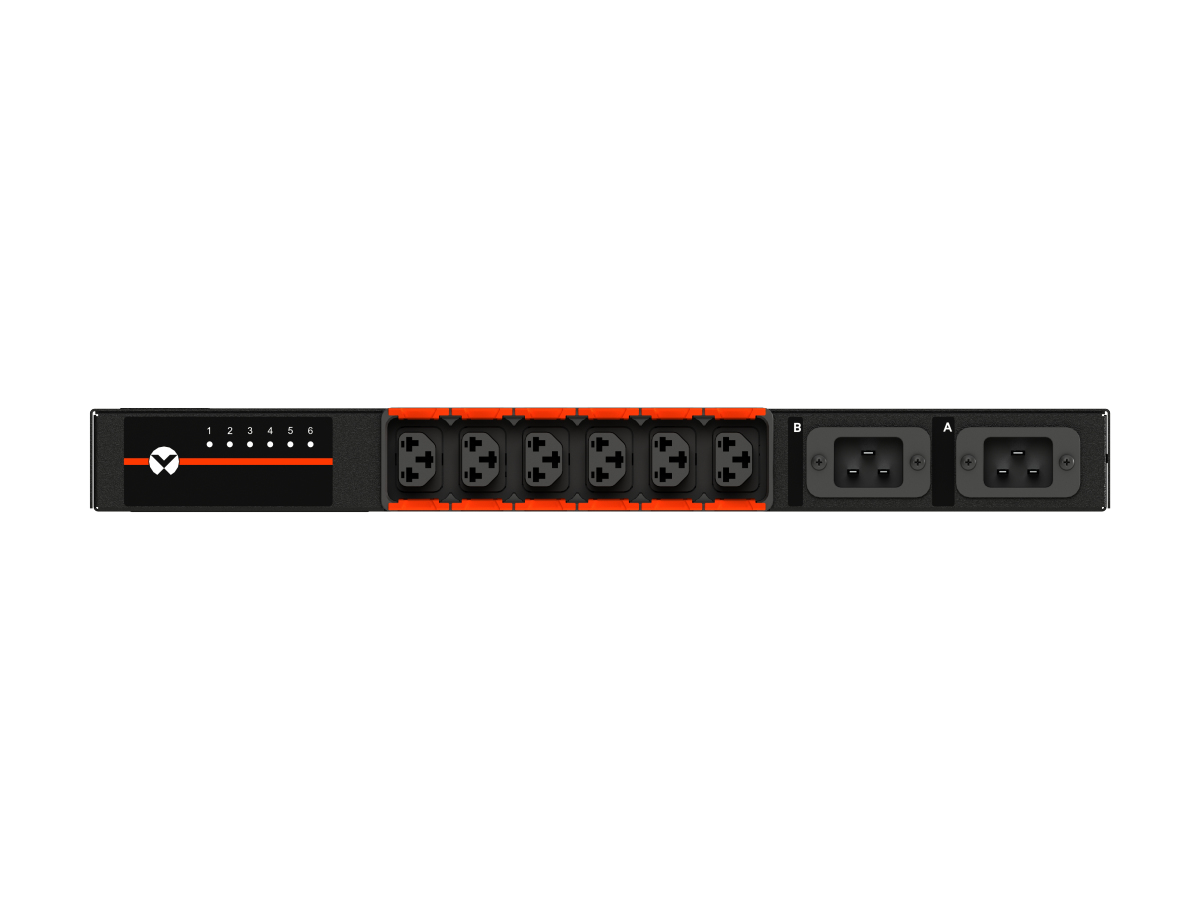

Geist AUR3E1R5-06CF17-2C20C20A900-D power distribution unit (PDU) 6 AC outlet(s) 0U Black
Model AUR3E1R5-06CF17-2C20C20A900-DPart no. VA6U2100EAN 4061471342927
22 specifications
- Weight5.44 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity6 AC outlet(s)
- LED indicatorsYes
- MonitoringCurrent, Power, Voltage
Overview
- Weight
- 5.44 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 6 AC outlet(s)
- LED indicators
- Yes
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- AUR3E1R5-06CF17-2C20C20A900-D
- Part number
- VA6U2100
- EAN / UPC
- 4061471342927
- Also known as
- Vertiv Geist AUR3E1R5-06CF17-2C20C20A900-D power distribution unit (PDU) 6 AC outlet(s) 0U Black
Specifications
22 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C13 coupler |
| AC outlet types | C20 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Firmware upgradeable via | USB |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Number of phases | 1 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Marked UKCA Marked Complies with EN 55032 and EN 55035 RoHS Compliant FCC Part 15 Class A Conformance RCM Mark (EMC Only) China RoHS UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 457 mm |
| Height | 44 mm |
| Weight | 5.44 kg |
