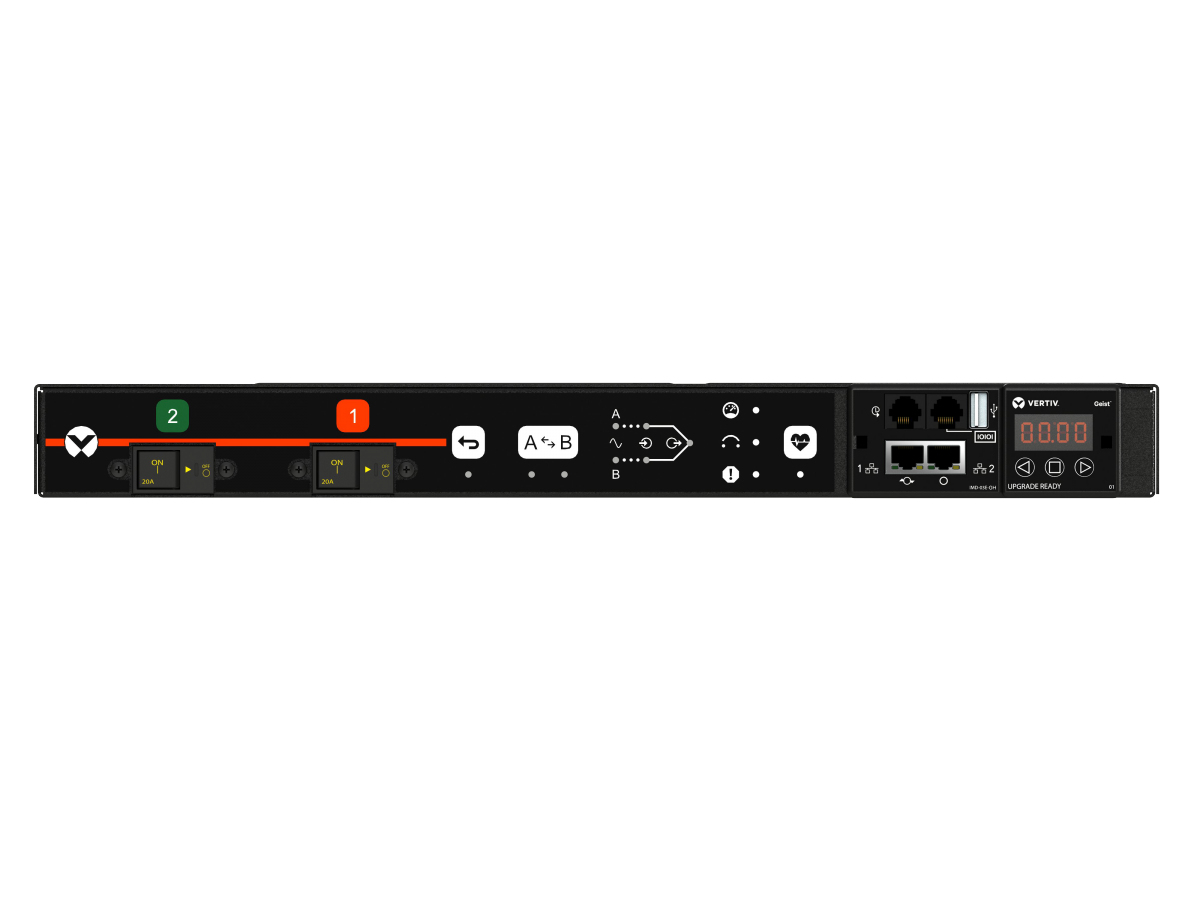

Vertiv Geist AN03E1R1-12CF18-3TL6TL6A011-D power distribution unit (PDU) 12 AC outlet(s) 0U Black

Vertiv Geist AN03E1R1-12CF18-3TL6TL6A011-D power distribution unit (PDU) 12 AC outlet(s) 0U Black

Model AN03E1R1-12CF18-3TL6TL6A011-DPart no. VA4N3102

28 specifications

TypeSingle-phase
ColourBlack
PDU typesMonitored, Switched
AC outlets quantity12 AC outlet(s)
LED indicatorsNo
MonitoringCurrent, Power, Voltage

See all specifications

Overview

Type: Single-phase
Colour: Black
PDU types: Monitored, Switched
AC outlets quantity: 12 AC outlet(s)
LED indicators: No
Monitoring: Current, Power, Voltage

Brand: Vertiv
Category: Power Distribution Units (PDUs)
Model: AN03E1R1-12CF18-3TL6TL6A011-D
Part number: VA4N3102
Also known as: Vertiv Geist AN03E1R1-12CF18-3TL6TL6A011-D power distribution unit (PDU) 12 AC outlet(s) 0U Black

Specifications

28 specifications in 8 groups

Design

Specification	Value
PDU types	Monitored, Switched
Type	Single-phase
Rack capacity	0U
Mounting	Horizontal
Product colour	Black
Display	LED
On/off switch	Yes

Ports & interfaces

Specification	Value
AC outlets quantity	12 AC outlet(s)
Power plug	NEMA L6-30P
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Features

Specification	Value
LED indicators	No
Cable length	3 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Power

Specification	Value
Nominal input voltage	200-240 V
AC input frequency	50/60 Hz
Maximum current	30 A
Output voltage	208 V
Load capacity	208 VA
Power protection features	Over current

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 60 °C

Weight & dimensions

Specification	Value
Width	432 mm
Depth	457 mm
Height	44 mm

Packaging data

Specification	Value
Package weight	10.9 kg
