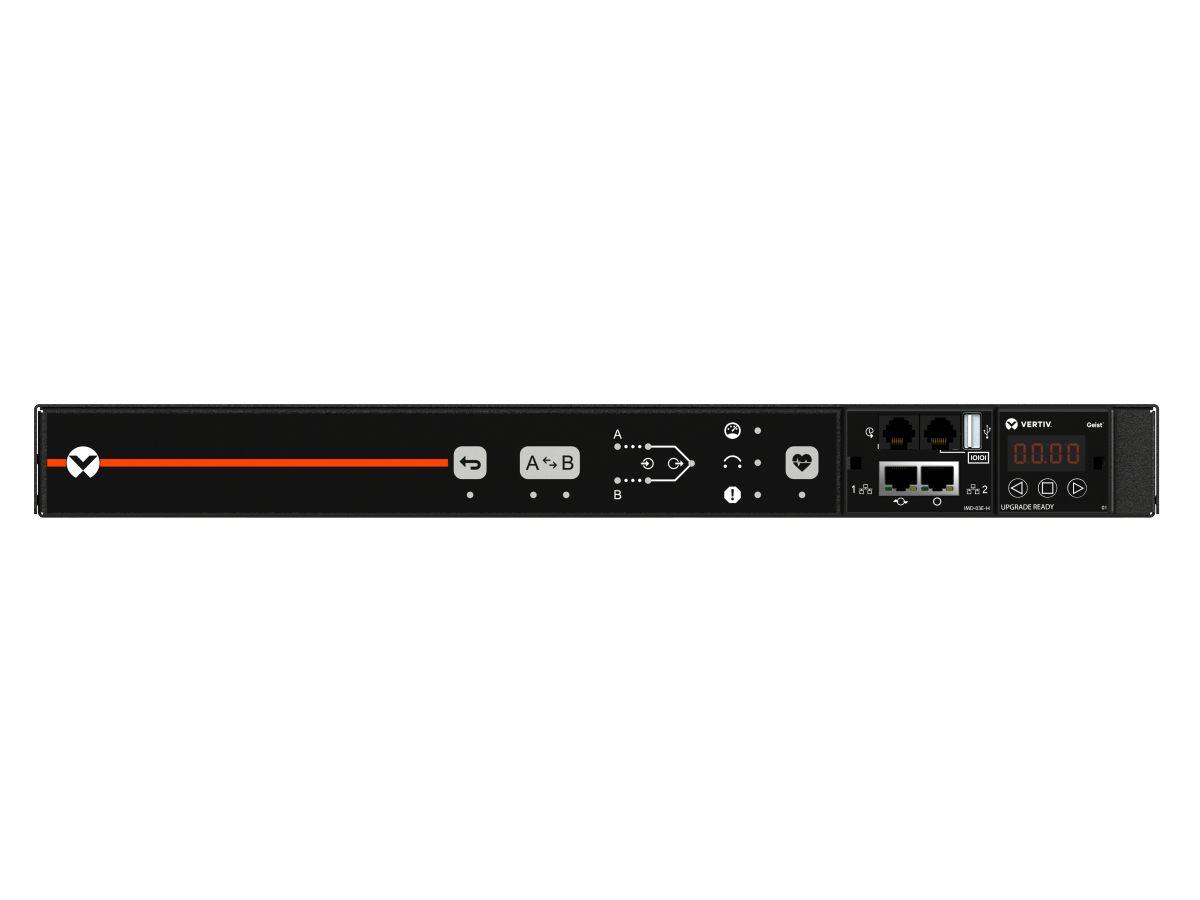

Geist AG03E1R0-12CF13-2PS6PS6B211-D power distribution unit (PDU) 12 AC outlet(s) 0U Black
Model AG03E1R0-12CF13-2PS6PS6B211-DPart no. VA4G8100EAN 4061471342880
25 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity12 AC outlet(s)
- Reset buttonYes
- MonitoringCurrent, Power, Voltage
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 12 AC outlet(s)
- Reset button
- Yes
- Monitoring
- Current, Power, Voltage
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- AG03E1R0-12CF13-2PS6PS6B211-D
- Part number
- VA4G8100
- EAN / UPC
- 4061471342880
- Also known as
- Vertiv Geist AG03E1R0-12CF13-2PS6PS6B211-D power distribution unit (PDU) 12 AC outlet(s) 0U Black
Specifications
25 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Load capacity | 230 VA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 457 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.62 kg |
