8-Outlet Industrial Power Strip
125V/15A, EMI/RFI Isolation, Surge Protection, Mountable PDU, 12ft/3.6m Power Cord, NEMA 5-15P/R, UL Listed, TAA
Model 8N515S12-POWER-STRIPEAN 065030902199
37 specifications
- Weight1.5 kg
- ColourGrey
- PDU typesBasic
- AC outlets quantity8 AC outlet(s)
- EMI/RFI noise filteringYes
- Nominal input voltage125 V
Overview
- Weight
- 1.5 kg
- Colour
- Grey
- PDU types
- Basic
- AC outlets quantity
- 8 AC outlet(s)
- EMI/RFI noise filtering
- Yes
- Nominal input voltage
- 125 V
- Brand
- StarTech.com
- Category
- Power Distribution Units (PDUs)
- Model
- 8N515S12-POWER-STRIP
- Part number
- 8N515S12-POWER-STRIP
- EAN / UPC
- 065030902199
- Also known as
- StarTech.com 8-Outlet Industrial Power Strip 125V/15A, EMI/RFI Isolation, Surge Protection, Mountable PDU, 12ft/3.6m Power Cord, NEMA 5-15P/R, UL Listed, TAA
Specifications
37 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Housing material | Aluminium |
| Product colour | Grey |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | NEMA 5–15P |
| AC outlet types | NEMA 1–15R |
Features
| Specification | Value |
|---|---|
| EMI/RFI noise filtering | Yes |
| LED indicators | Yes |
| Cable length | 3.7 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 125 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 15 A |
| Nominal output voltage | 125 V |
| Maximum total current draw per phase | 15 A |
| Surge energy rating | 3960 J |
| Surge protection | Yes |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 90 mm |
| Height | 62 mm |
| Weight | 1.5 kg |

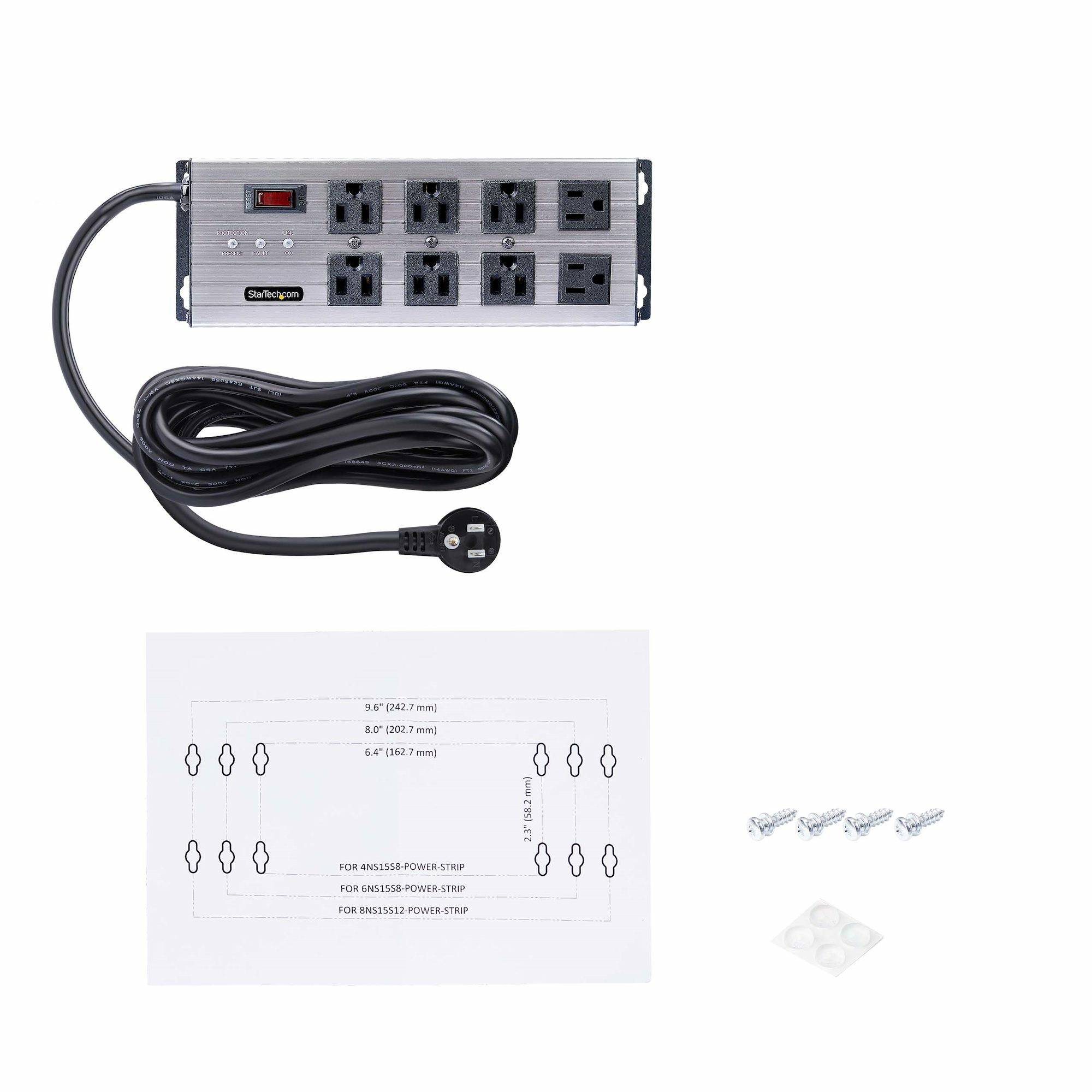

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Number of screws | 4 |
| Screws included | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.6 kg |
| Package width | 297 mm |
| Package depth | 191 mm |
| Package height | 106 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 402 mm |
| Master (outer) case length | 339 mm |
| Master (outer) case height | 615 mm |
| Products per master (outer) case | 12 pc(s) |
