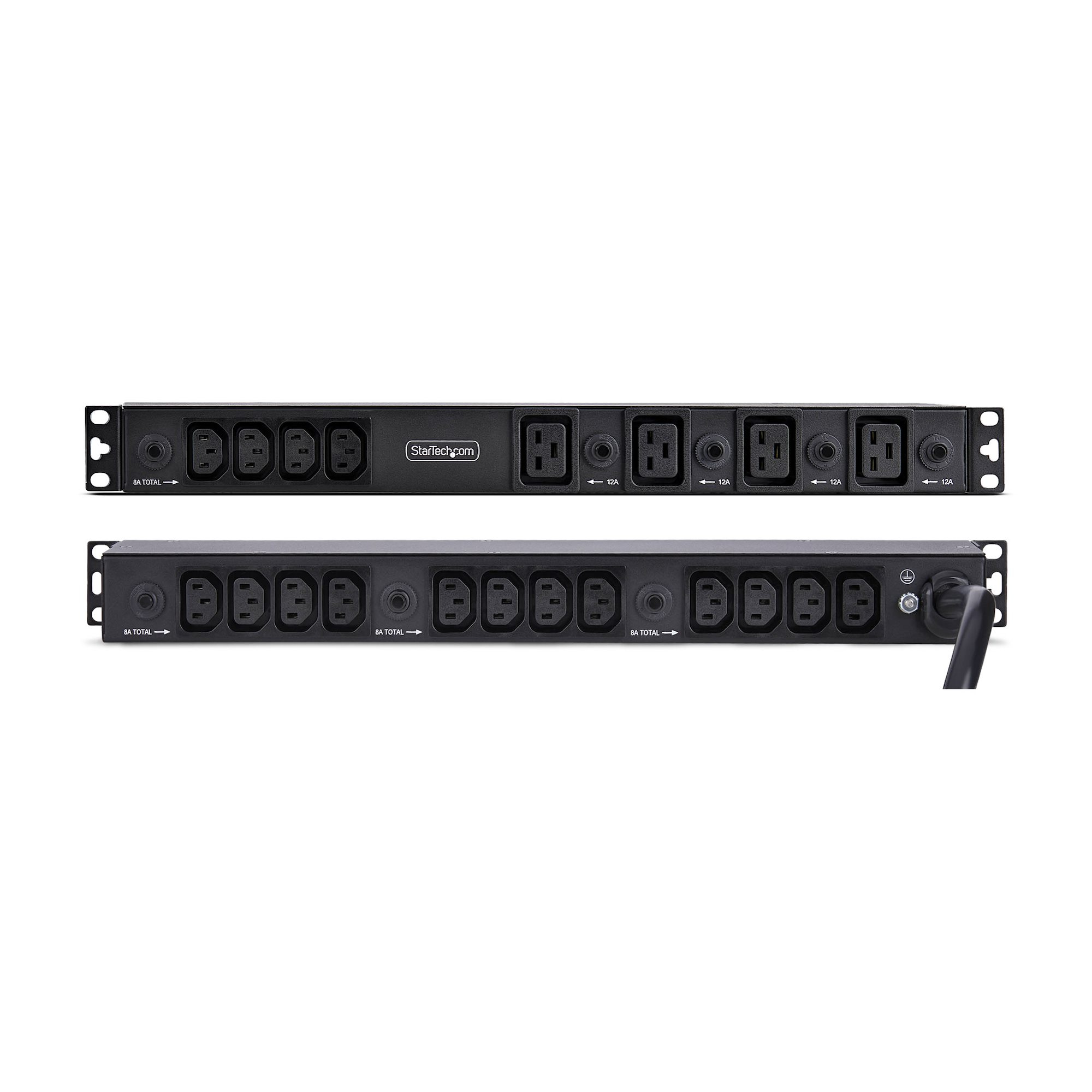

20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, 8x Front and 12x Rear Outlets, NEMA L6-30P Wall Connection, 30A/240V, UL-Listed,
Model 2030B8H-RACK-PDU-ICEAN 065030920919
31 specifications
- Weight3.34 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity20 AC outlet(s)
- Cable length2.4 m
- Nominal input voltage200-240 V
Overview
- Weight
- 3.34 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 20 AC outlet(s)
- Cable length
- 2.4 m
- Nominal input voltage
- 200-240 V
- Brand
- StarTech.com
- Category
- Power Distribution Units (PDUs)
- Model
- 2030B8H-RACK-PDU-IC
- Part number
- 2030B8H-RACK-PDU-IC
- EAN / UPC
- 065030920919
- Also known as
- StarTech.com 20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, 8x Front and 12x Rear Outlets, NEMA L6-30P Wall Connection, 30A/240V, UL-Listed,
Specifications
31 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Housing material | Steel |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 20 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 2.4 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| Maximum current | 30 A |
| Nominal output voltage | 200-240 V |
| Maximum input current per phase | 24 A |
| Maximum total current draw per phase | 30 A |
| Circuit breaker | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43.3 mm |
| Depth | 500 mm |
| Height | 95.2 mm |
| Weight | 3.34 kg |

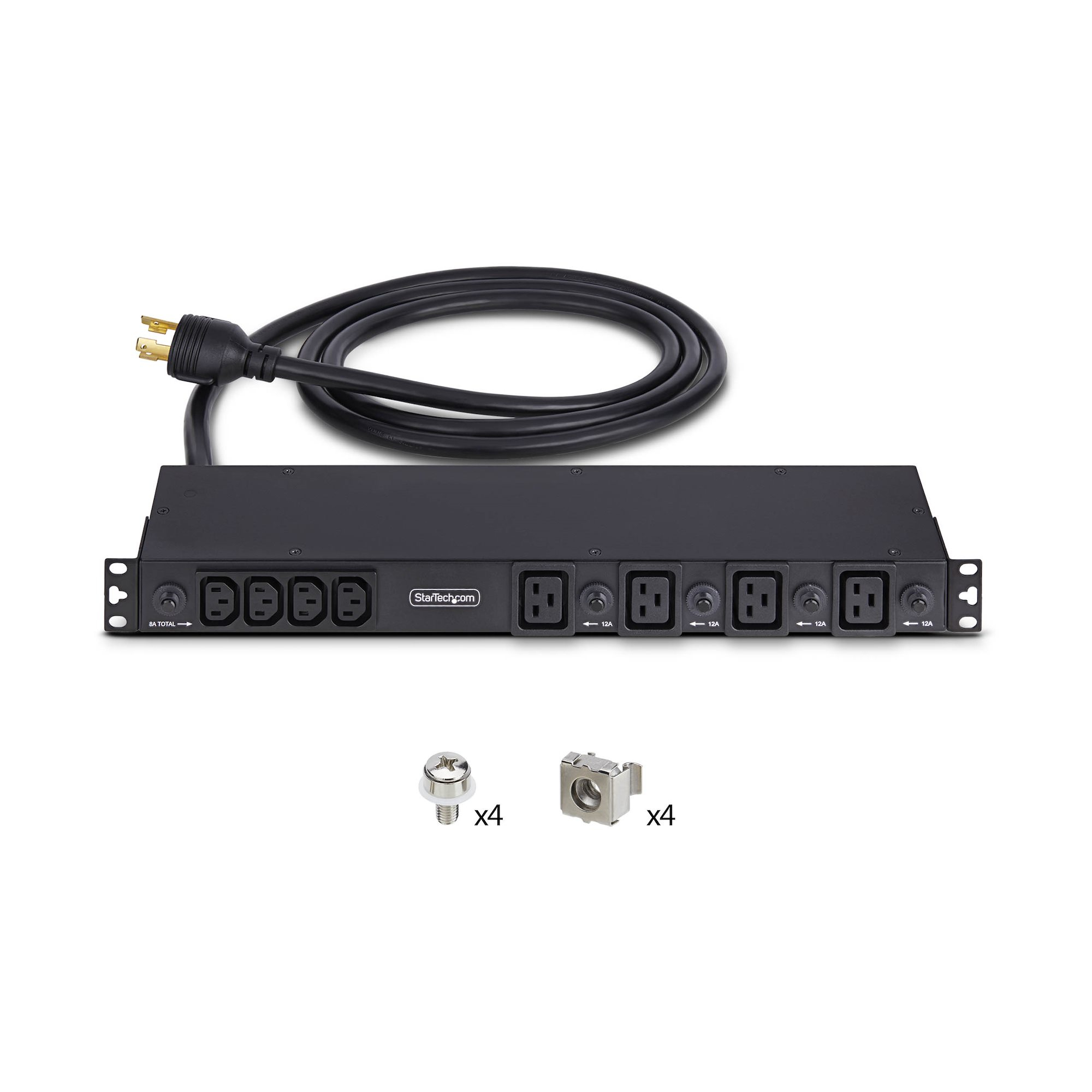

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Number of screw nuts | 4 |
| Number of screws | 4 |
| Rack mount kit | Yes |
| Screw nuts included | Yes |
| Screws included | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.6 kg |
| Package width | 511 mm |
| Package depth | 281 mm |
| Package height | 76 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 528 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 299 mm |
| Products per master (outer) case | 4 pc(s) |
