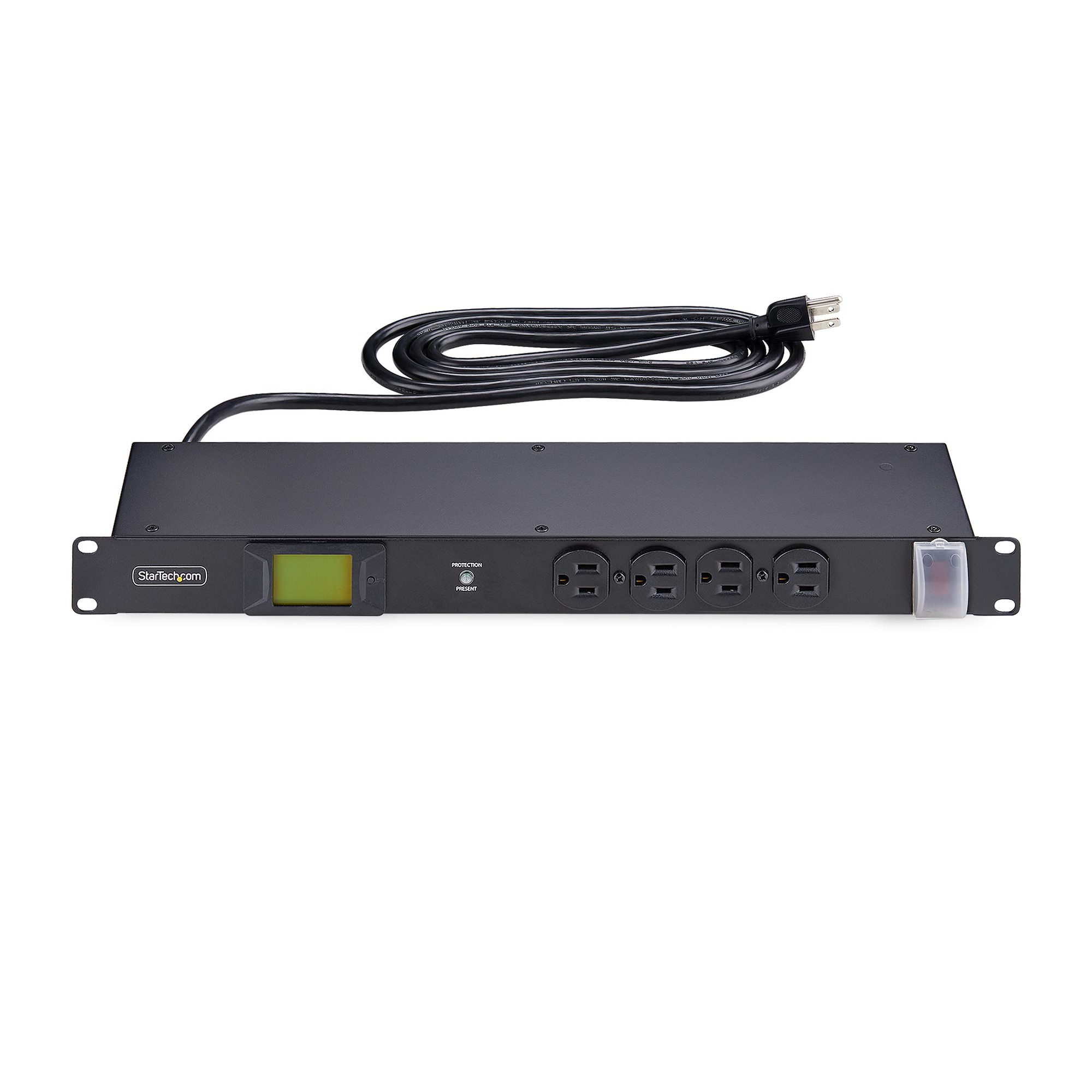

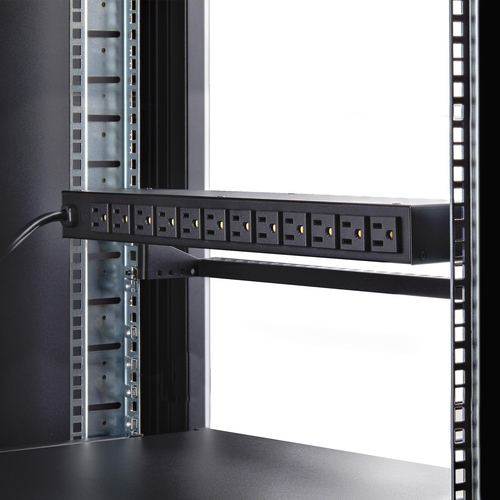

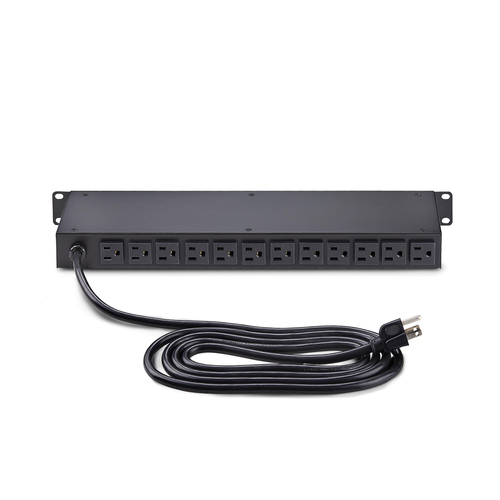

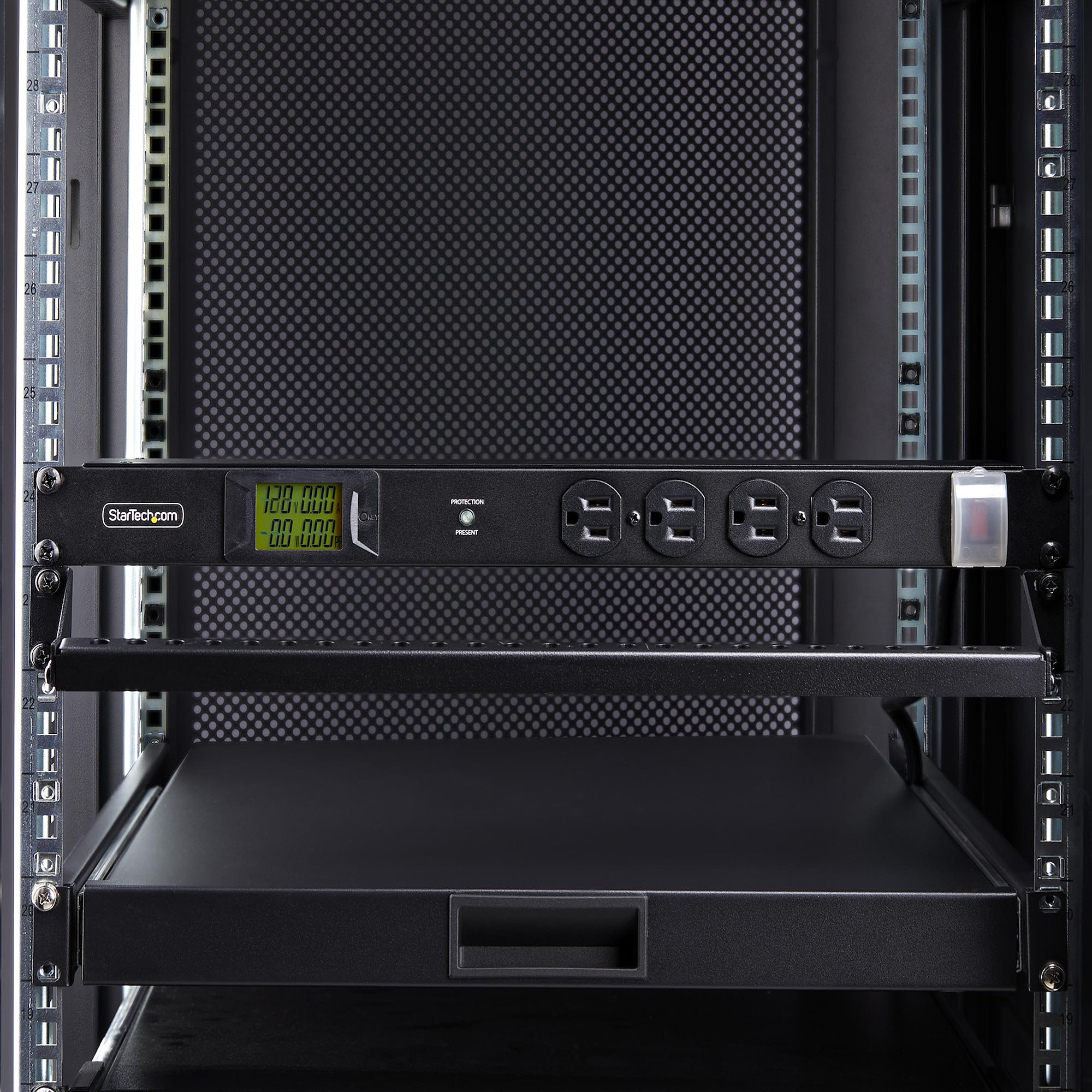

16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector
125V/15A, 8ft (2.4m) Power Cable, Power Distribution Unit, TA
Model 16NM8-RACK-MOUNT-PDUEAN 065030902588
37 specifications
- Weight2 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity16 AC outlet(s)
- LED indicatorsYes
- MonitoringCurrent, Power, Voltage
Overview
- Weight
- 2 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 16 AC outlet(s)
- LED indicators
- Yes
- Monitoring
- Current, Power, Voltage
- Brand
- StarTech.com
- Category
- Power Distribution Units (PDUs)
- Model
- 16NM8-RACK-MOUNT-PDU
- Part number
- 16NM8-RACK-MOUNT-PDU
- EAN / UPC
- 065030902588
- Also known as
- StarTech.com 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft (2.4m) Power Cable, Power Distribution Unit, TA
Specifications
37 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |

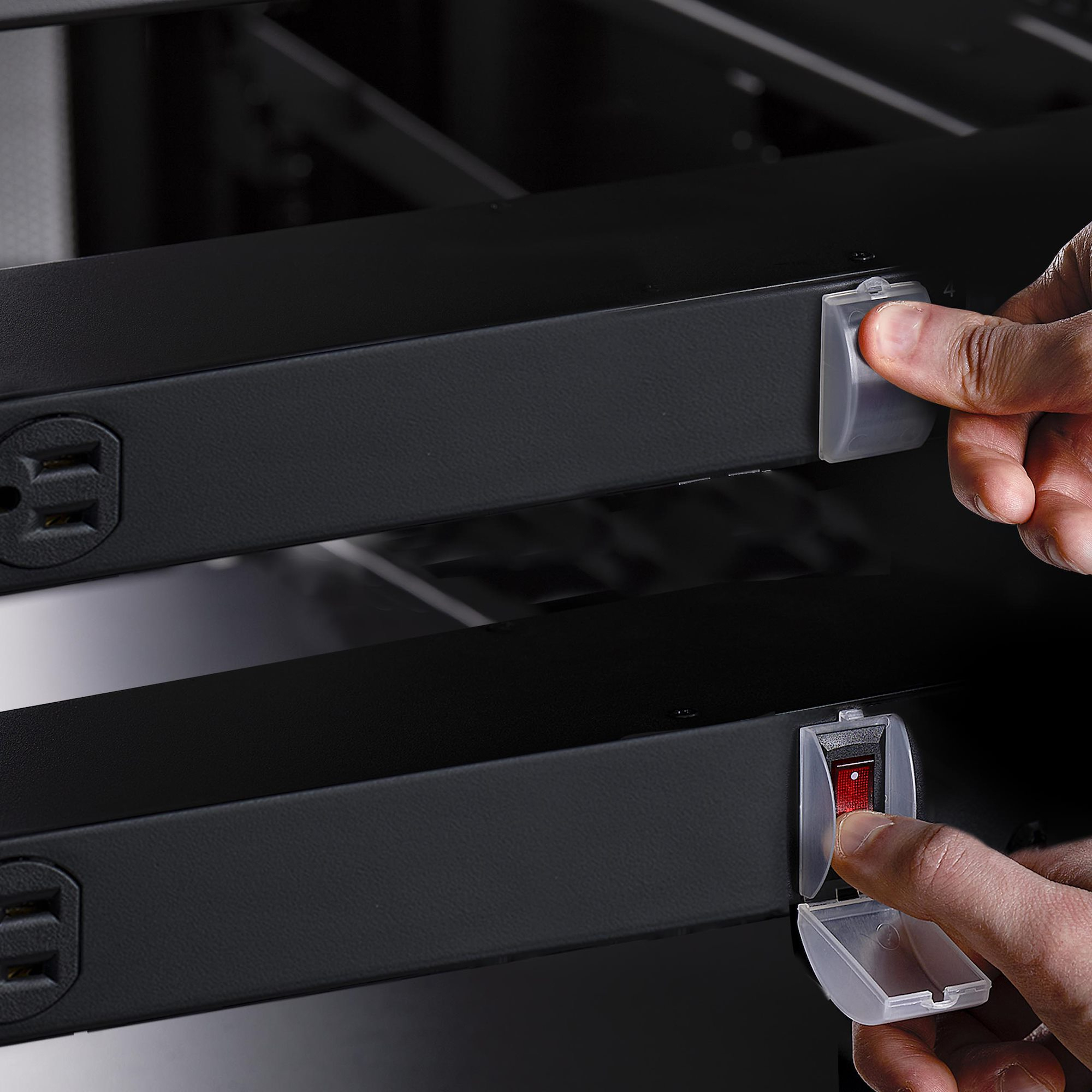

| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

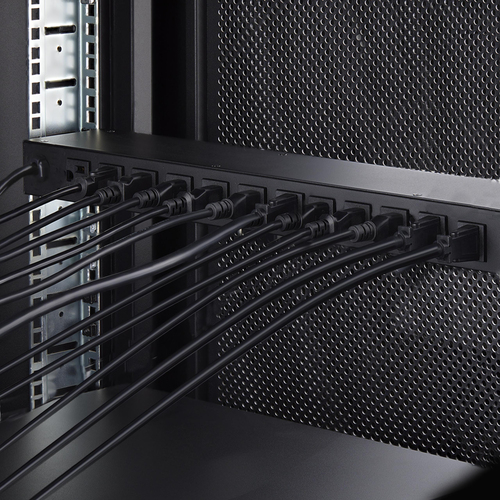

| AC outlets quantity | 16 AC outlet(s) |
| Power plug | NEMA 5-15P |
| AC outlet types | NEMA 5-15R |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 2.4 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| Maximum current | 15 A |
| Nominal output voltage | 120 V |
| Output voltage | 125 V |
| Maximum total current draw per phase | 15 A |
| Power protection features | Surge protection |
| Surge energy rating | 1080 J |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), cULus |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 96 mm |
| Height | 43 mm |
| Weight | 2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.6 kg |
| Package width | 555 mm |
| Package depth | 190 mm |
| Package height | 80 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 575 mm |
| Master (outer) case length | 206 mm |
| Master (outer) case height | 352 mm |
| Products per master (outer) case | 4 pc(s) |
