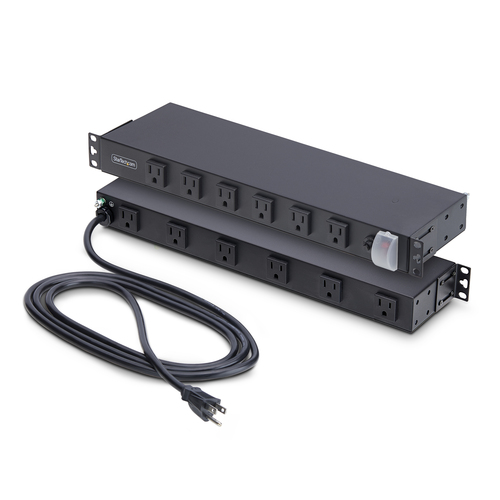

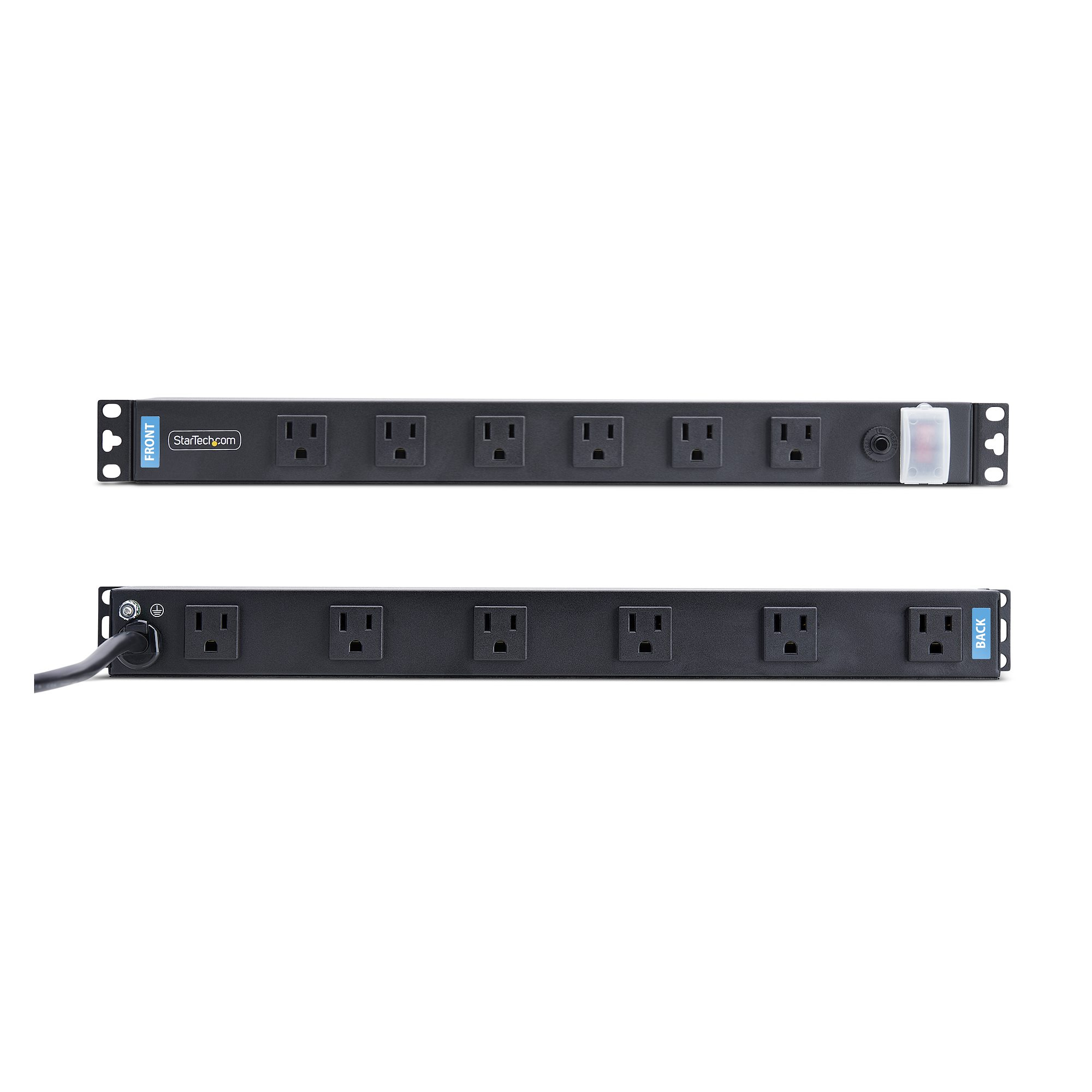

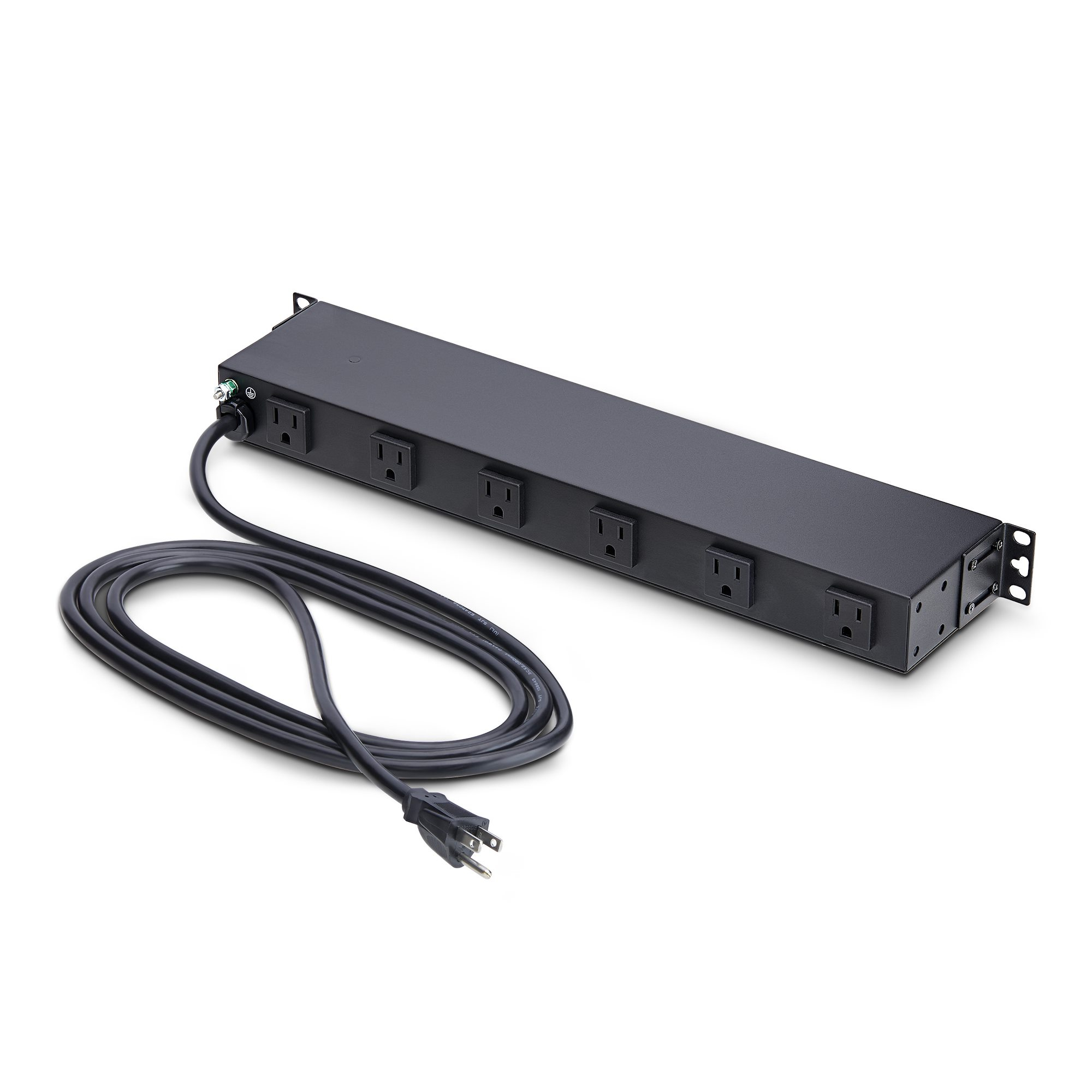

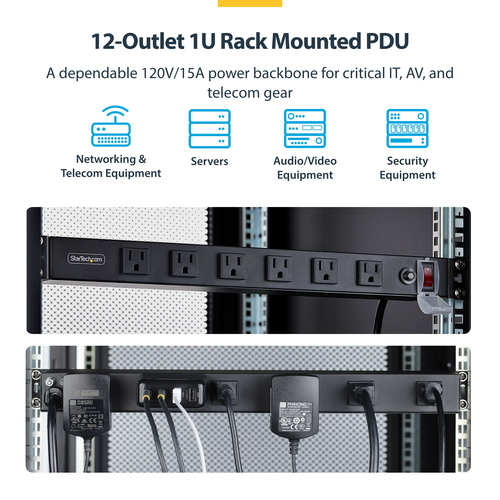

12-Outlet Rackmount PDU, 1U Server Power Strip with Wide-Spaced Right-Angle Ports, Mounted Power Distribution Unit for 19-Inch Racks and Cabinets
Model 1215B8H-RACK-PDU-RAEAN 065030920940
35 specifications
- Weight1.62 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity12 AC outlet(s)
- Cable length2.4 m
- Nominal input voltage120 V
Overview
- Weight
- 1.62 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 12 AC outlet(s)
- Cable length
- 2.4 m
- Nominal input voltage
- 120 V
- Brand
- StarTech.com
- Category
- Power Distribution Units (PDUs)
- Model
- 1215B8H-RACK-PDU-RA
- Part number
- 1215B8H-RACK-PDU-RA
- EAN / UPC
- 065030920940
- Also known as
- StarTech.com 12-Outlet Rackmount PDU, 1U Server Power Strip with Wide-Spaced Right-Angle Ports, Mounted Power Distribution Unit for 19-Inch Racks and Cabinets
Specifications
35 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Housing material | Steel |
| Product colour | Black |

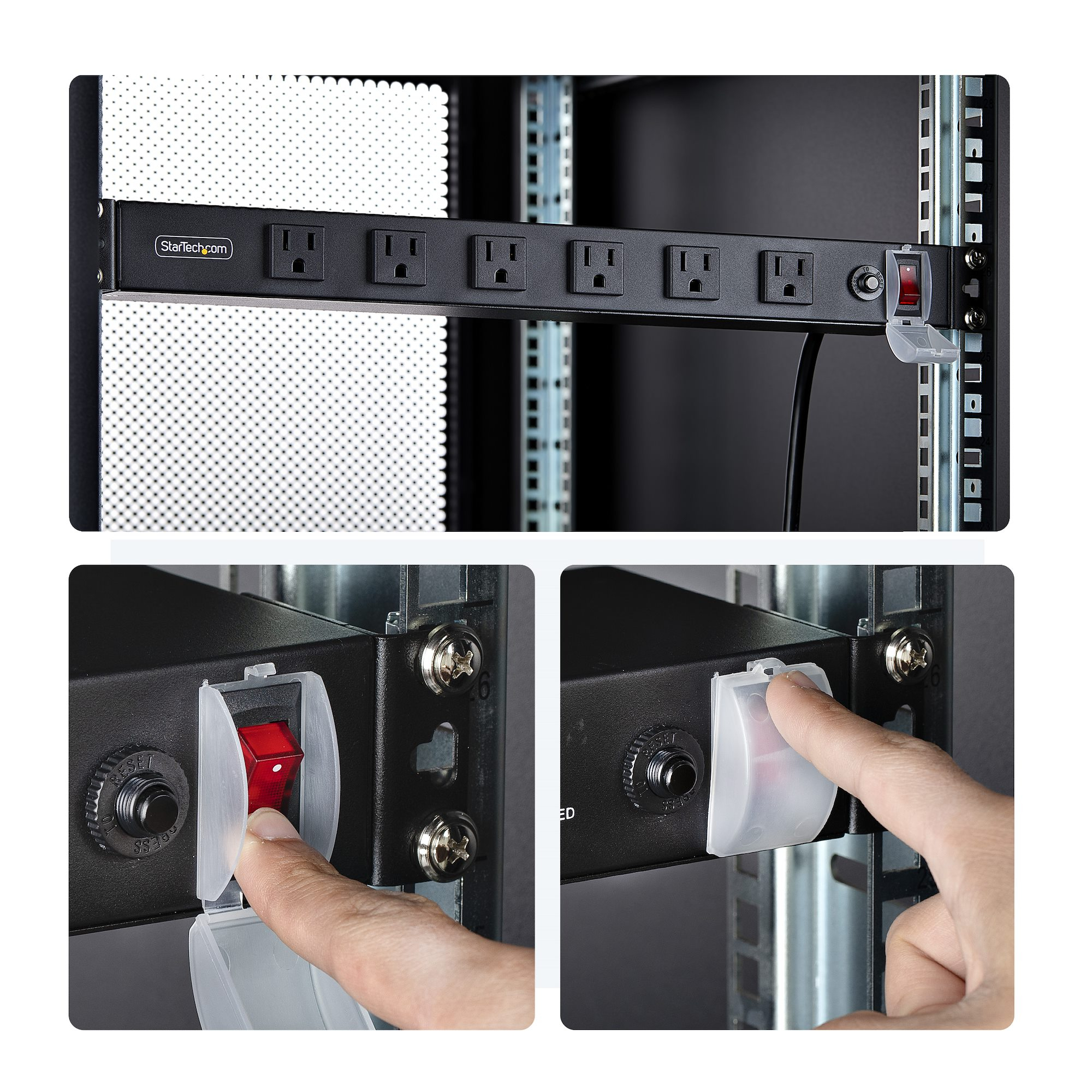

| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | NEMA 5-15P |
| AC outlet types | NEMA 5-15R |
Features
| Specification | Value |
|---|---|
| Cable length | 2.4 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| Maximum current | 15 A |
| Nominal output voltage | 120 V |
| Output voltage | 125 V |
| Load capacity | 1500 VA |
| Maximum total current draw per phase | 15 A |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95.2 mm |
| Depth | 477.2 mm |
| Height | 43.3 mm |
| Weight | 1.62 kg |

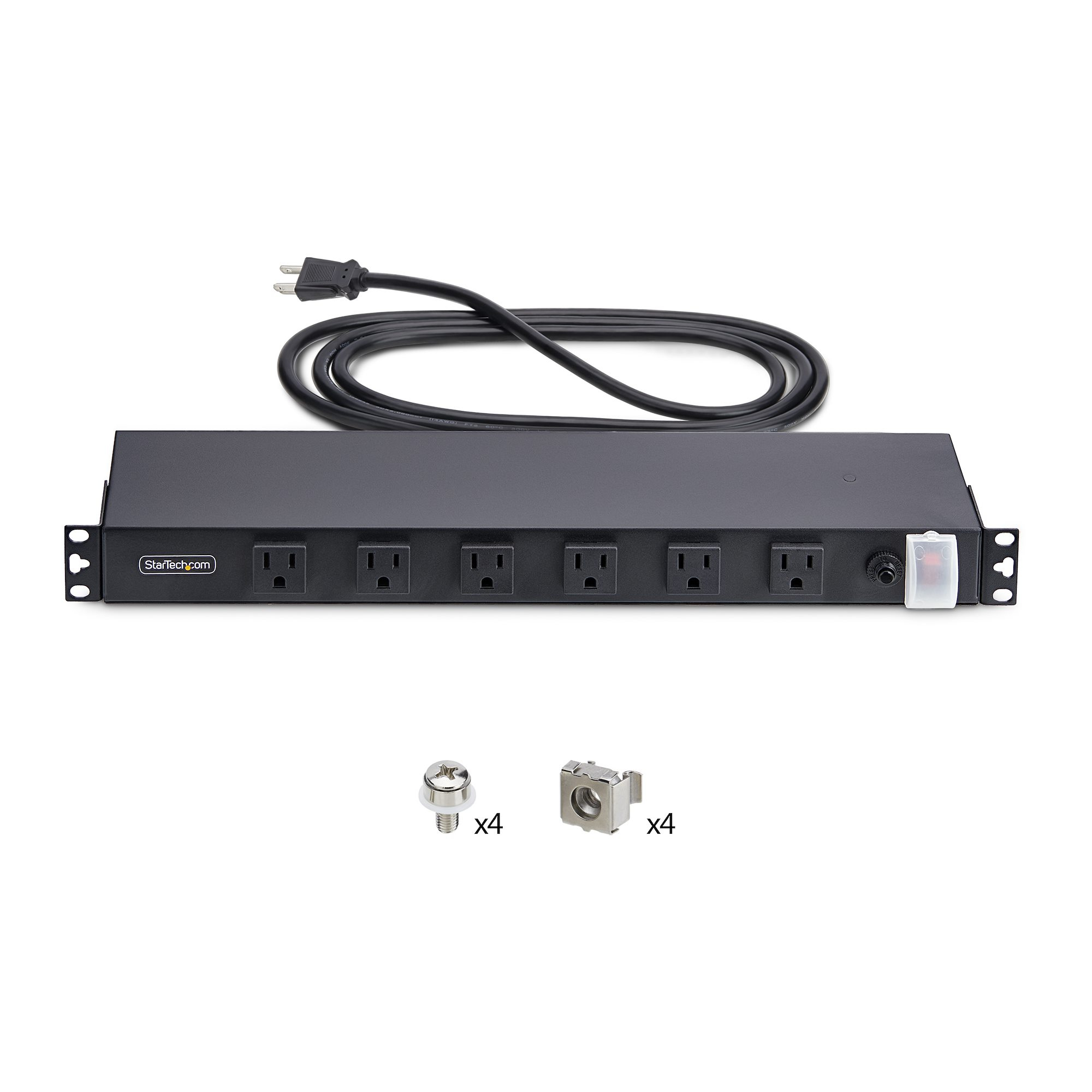

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Number of screw nuts | 4 |
| Number of screws | 4 |
| Rack mount kit | Yes |
| Screw nuts included | Yes |
| Screws included | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.1 kg |
| Package width | 515 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 528 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 4 pc(s) |
