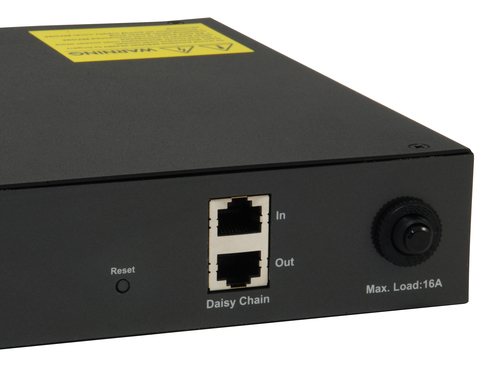

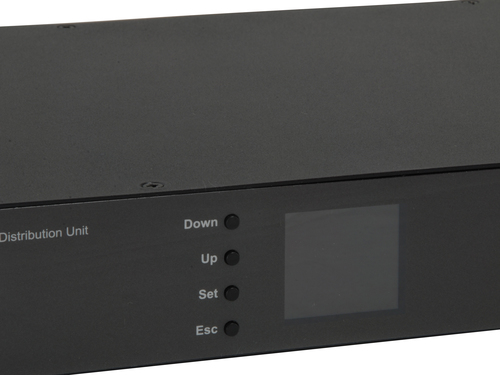

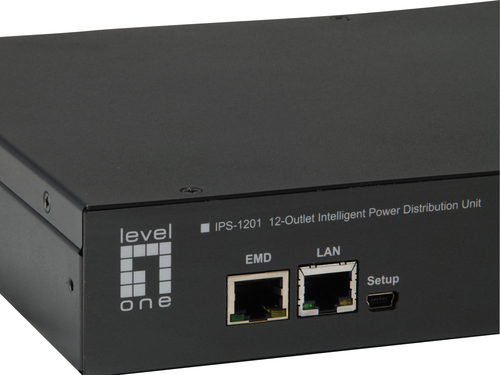

LevelOne 12-Outlet Intelligent Power Distribution Unit, 100-125V AC

LevelOne 12-Outlet Intelligent Power Distribution Unit, 100-125V AC

Model IPS-1201AEAN 4015867205365

34 specifications

Weight3 kg
ColourBlack
AC outlets quantity12 AC outlet(s)
Daisy chainYes
MonitoringCurrent
Nominal input voltage100 - 125 V

See all specifications

Overview

Weight: 3 kg
Colour: Black
AC outlets quantity: 12 AC outlet(s)
Daisy chain: Yes
Monitoring: Current
Nominal input voltage: 100 - 125 V

Brand: LevelOne
Category: Power Distribution Units (PDUs)
Model: IPS-1201A
Part number: IPS-1201A
EAN / UPC: 4015867205365
Also known as: LevelOne 12-Outlet Intelligent Power Distribution Unit, 100-125V AC

Specifications

34 specifications in 11 groups

Design

Specification	Value
Product colour	Black
Display	LCD

Ports & interfaces

Specification	Value
AC outlets quantity	12 AC outlet(s)
AC outlet types	NEMA 5–15R
Ethernet LAN (RJ-45) ports	4
USB ports quantity	1

Features

Specification	Value
Daisy chain	Yes
Security algorithms	SSH, SSL/TLS

Management features

Specification	Value
Monitoring	Current
Management protocols	Web, SNMP, SSH, Hyper Terminal

Power

Specification	Value
Nominal input voltage	100 - 125 V
Maximum current	16 A
Power protection features	Over current, Over voltage

Certificates

Specification	Value
Certification	FCC (Class A), CE, LVD

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	431.6 mm
Depth	200 mm
Height	42 mm
Weight	3 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes

Packaging data

Specification	Value
Package weight	3.5 kg
Package width	527 mm
Package depth	290 mm
Package height	137 mm
Package type	Box

Logistics data

Specification	Value
Master (outer) case width	439 mm
Master (outer) case length	309 mm
Master (outer) case height	570 mm
Master (outer) case gross weight	11.7 kg
Products per master (outer) case	3 pc(s)
