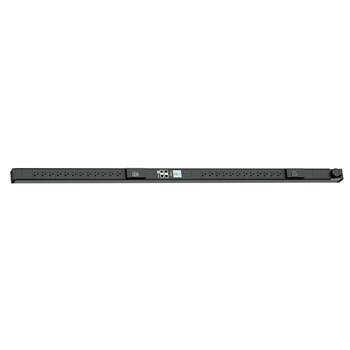

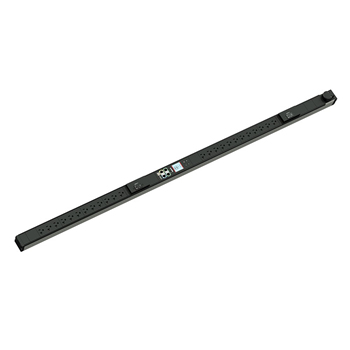

LP-41300 power distribution unit (PDU) 24 AC outlet(s) 0U Black, Silver
Model LP-41300
31 specifications
- TypeSingle-phase
- ColourBlack, Silver
- PDU typesMetered, Switched
- AC outlets quantity24 AC outlet(s)
- Reset buttonYes
- Outlet controlLock-out
Overview
- Type
- Single-phase
- Colour
- Black, Silver
- PDU types
- Metered, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Reset button
- Yes
- Outlet control
- Lock-out
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- LP-41300
- Part number
- LP-41300
- Also known as
- Legrand LP-41300 power distribution unit (PDU) 24 AC outlet(s) 0U Black, Silver
Specifications
31 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black, Silver |
| Display | LCD |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L5-30P |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| Ethernet LAN (RJ-45) ports | 4 |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Outlet control | Lock-out |
| Management protocols | HTTP(s); SSH; Telnet; RS-232 (Serial) |
| Supported network protocols | 802.11a/b/g/n |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 120 V |
| Output voltage | 100 - 120 V |
| Maximum input current per phase | 16 A |
| Surge protection | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 52 mm |
| Depth | 50 mm |
| Height | 1539 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
