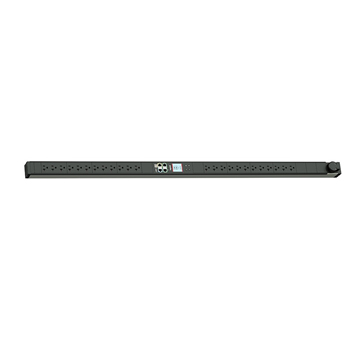

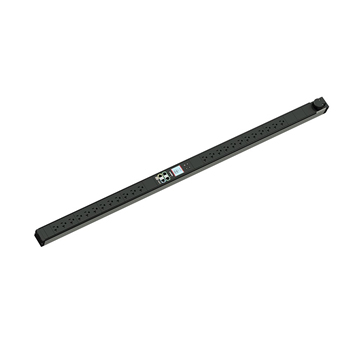

LP-41200 power distribution unit (PDU) 24 AC outlet(s) 0U Black, Silver
Model LP-41200
29 specifications
- TypeSingle-phase
- ColourBlack, Silver
- PDU typesBasic
- AC outlets quantity24 AC outlet(s)
- Outlet controlLock-out
- Nominal input voltage120 V
Overview
- Type
- Single-phase
- Colour
- Black, Silver
- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- Outlet control
- Lock-out
- Nominal input voltage
- 120 V
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- LP-41200
- Part number
- LP-41200
- Also known as
- Legrand LP-41200 power distribution unit (PDU) 24 AC outlet(s) 0U Black, Silver
Specifications
29 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black, Silver |
| Display | LCD |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L5-20P |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| Ethernet LAN (RJ-45) ports | 4 |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Humidity, Power, Voltage |
| Outlet control | Lock-out |
| Management protocols | HTTP(s); SSH; Telnet; RS-232 (Serial) |
| Supported network protocols | 802.11a/b/g/n |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 120 V |
| Output voltage | 100 - 120 V |
| Maximum input current per phase | 16 A |
| Surge protection | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 52 mm |
| Depth | 50 mm |
| Height | 1298 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
