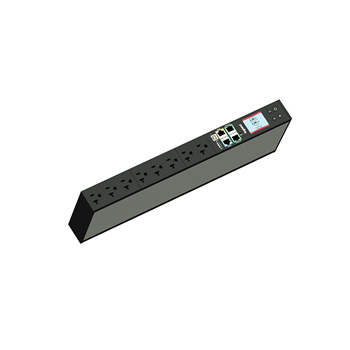

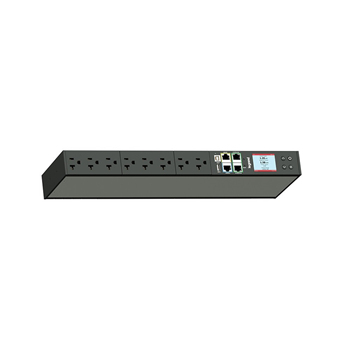

LP-41110 power distribution unit (PDU) 42 AC outlet(s) 0U Black, Silver
Model LP-41110
33 specifications
- TypeSingle-phase
- ColourBlack, Silver
- PDU typesBasic
- AC outlets quantity42 AC outlet(s)
- Cable length3 m
- MonitoringCurrent, Power, Voltage
Overview
- Type
- Single-phase
- Colour
- Black, Silver
- PDU types
- Basic
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 3 m
- Monitoring
- Current, Power, Voltage
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- LP-41110
- Part number
- LP-41110
- Also known as
- Legrand LP-41110 power distribution unit (PDU) 42 AC outlet(s) 0U Black, Silver
Specifications
33 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black, Silver |
| Display | LCD |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 4 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
| Password protection | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Outlet control | Lock-out |
| Firmware upgradeable via | Network, USB |
| Management platform | TTP(s), SSH, Telnet, RS-232 (Serial) |
| Supported network protocols | 802.11a/b/g/n |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Output voltage | 200 - 240 V |
| Maximum input current per phase | 12 A |
| Maximum total current draw per phase | 16 A |
| Surge protection | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 59 mm |
| Depth | 50 mm |
| Height | 1539 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
