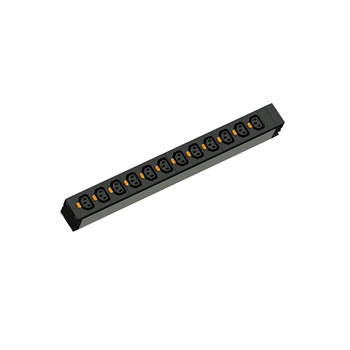

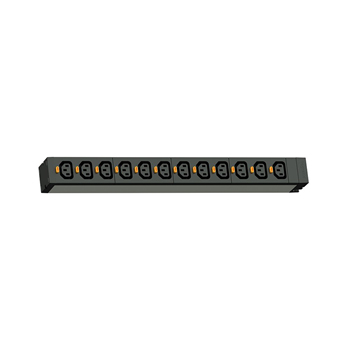

LP-22210 power distribution unit (PDU) 12 AC outlet(s) 1U Black, Silver
Model LP-22210
23 specifications
- TypeSingle-phase
- ColourBlack, Silver
- PDU typesBasic
- AC outlets quantity12 AC outlet(s)
- Cable length3 m
- Nominal input voltage208 V
Overview
- Type
- Single-phase
- Colour
- Black, Silver
- PDU types
- Basic
- AC outlets quantity
- 12 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 208 V
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- LP-22210
- Part number
- LP-22210
- Also known as
- Legrand LP-22210 power distribution unit (PDU) 12 AC outlet(s) 1U Black, Silver
Specifications
23 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black, Silver |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | NEMA L6-20P |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 208 V |
| Output voltage | 200 - 240 V |
| Maximum input current per phase | 12 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 50 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
