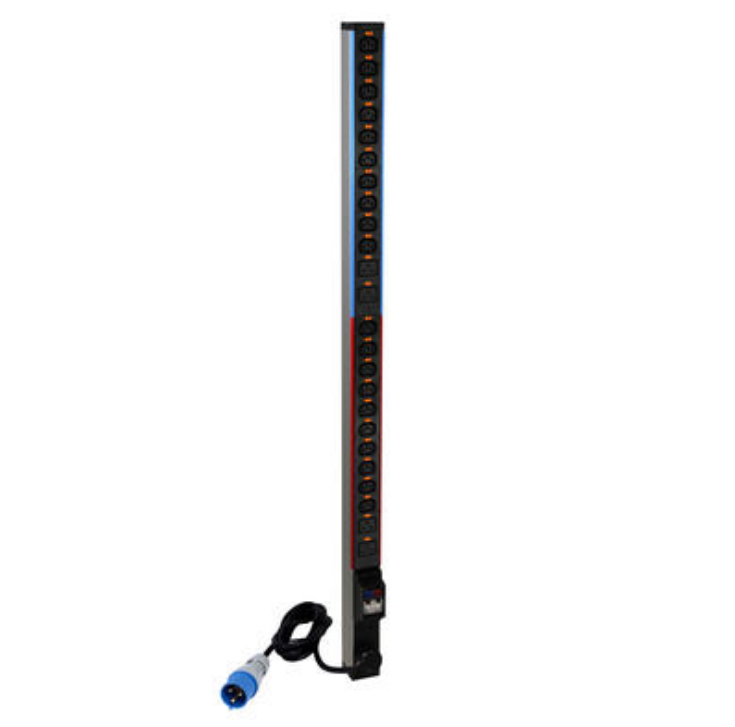

Legrand 646861 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model 646861EAN 3414970765789
19 specifications
- Power7400 W
- TypeSingle-phase
- Weight3.48 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity24 AC outlet(s)
Overview
- Power
- 7400 W
- Type
- Single-phase
- Weight
- 3.48 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- 646861
- Part number
- 646861
- EAN / UPC
- 3414970765789
- Also known as
- Legrand 646861 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
19 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 20 x C13 + 4 x C19 |
Features
| Specification | Value |
|---|---|
| Colour-coded outlets | Yes |
| Cable length | 3 m |
| Cable type | H07RNF |
| Compatible products | Legrand LCS |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Maximum power | 7400 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.48 kg |
