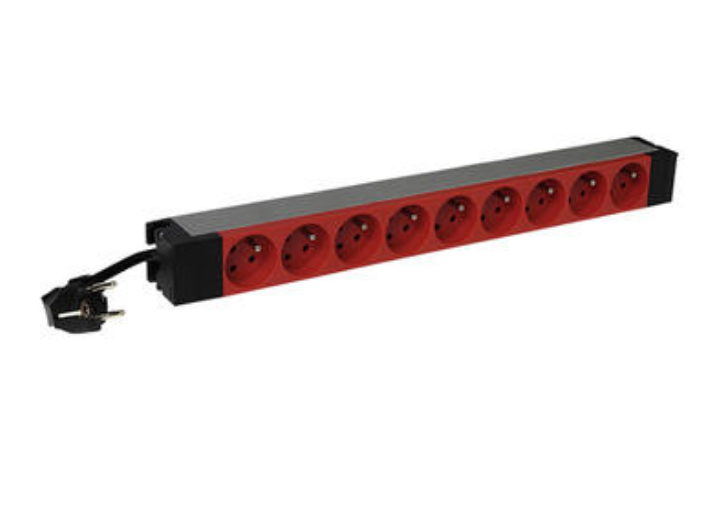

Legrand 646811 power distribution unit (PDU) 1U Black, Red
Model 646811EAN 3414970765307
16 specifications
- Power3700 W
- TypeSingle-phase
- Weight1 kg
- ColourBlack, Red
- PDU typesBasic
- Input connection typeSchuko/ UTE
Overview
- Power
- 3700 W
- Type
- Single-phase
- Weight
- 1 kg
- Colour
- Black, Red
- PDU types
- Basic
- Input connection type
- Schuko/ UTE
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- 646811
- Part number
- 646811
- EAN / UPC
- 3414970765307
- Also known as
- Legrand 646811 power distribution unit (PDU) 1U Black, Red
Specifications
16 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Housing material | Aluminium |
| Product colour | Black, Red |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | Schuko/ UTE |
| Output connections | 9 x 2P+Z |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
| Cable type | H05VV-F |
| Compatible products | Legrand LCS |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Maximum power | 3700 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
