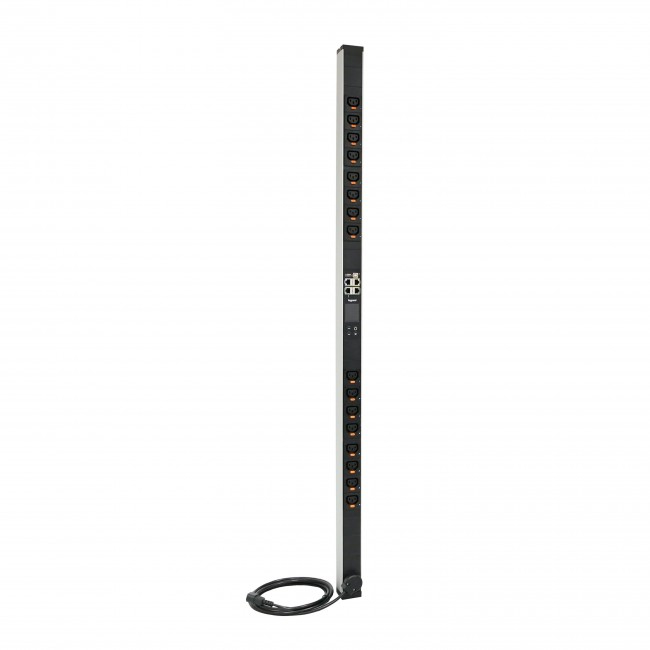

646025 power distribution unit (PDU) 16 AC outlet(s) 0U Black
Model 646025EAN 3414971617902
18 specifications
- Power2300 W
- Weight1.65 kg
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity16 AC outlet(s)
- Cable length3 m
Overview
- Power
- 2300 W
- Weight
- 1.65 kg
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 16 AC outlet(s)
- Cable length
- 3 m
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- 646025
- Part number
- 646025
- EAN / UPC
- 3414971617902
- Also known as
- Legrand 646025 power distribution unit (PDU) 16 AC outlet(s) 0U Black
Specifications
18 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Maximum current | 10 A |
| Maximum power | 2300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 52 mm |
| Height | 1298 mm |
| Weight | 1.65 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 288 mm |
| Package depth | 115 mm |
| Package height | 1647 mm |
