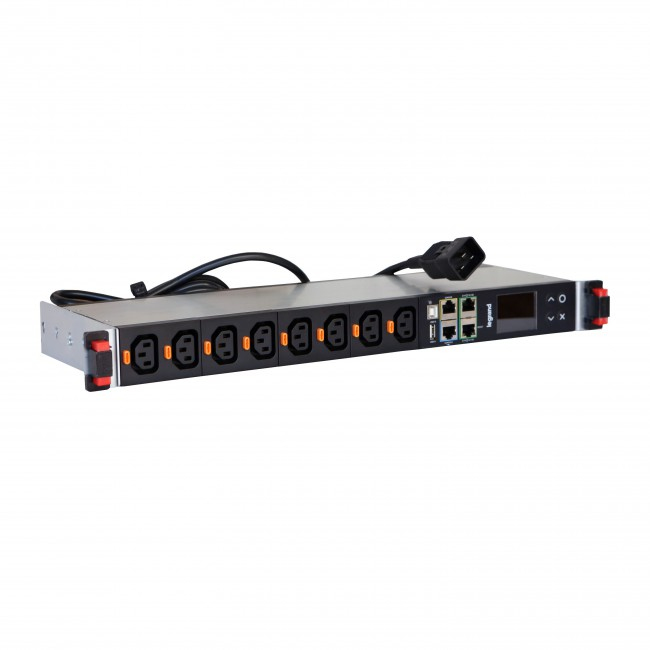

646010 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Model 646010
16 specifications
- Weight2.24 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity12 AC outlet(s)
- Cable length3 m
- Nominal input voltage230 - 400 V
Overview
- Weight
- 2.24 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 12 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 230 - 400 V
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- 646010
- Part number
- 646010
- Also known as
- Legrand 646010 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Specifications
16 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Rack capacity | 1U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 2 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 - 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.7 mm |
| Height | 44 mm |
| Weight | 2.24 kg |
| Size (imperial) | 48.3 cm (19") |
