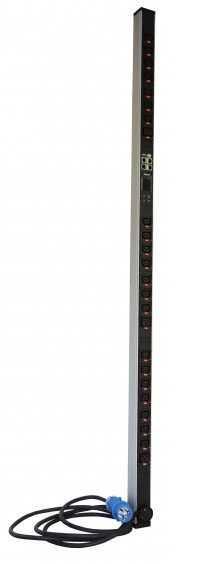

6 460 22
Model 6 460 22Part no. 646022EAN 3414971617872
21 specifications
- Power3700 W
- TypeSingle-phase
- ColourBlack
- PDU typesMetered, Switched
- AC outlets quantity24 AC outlet(s)
- Cable length3 m
Overview
- Power
- 3700 W
- Type
- Single-phase
- Colour
- Black
- PDU types
- Metered, Switched
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Brand
- Legrand
- Category
- Power Distribution Units (PDUs)
- Model
- 6 460 22
- Part number
- 646022
- EAN / UPC
- 3414971617872
- Also known as
- Legrand 6 460 22 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
21 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 2 |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Maximum current | 16 A |
| Maximum power | 3700 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 52 mm |
| Depth | 1539 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4 kg |
| Package width | 284 mm |
| Package depth | 115 mm |
| Package height | 1668 mm |
