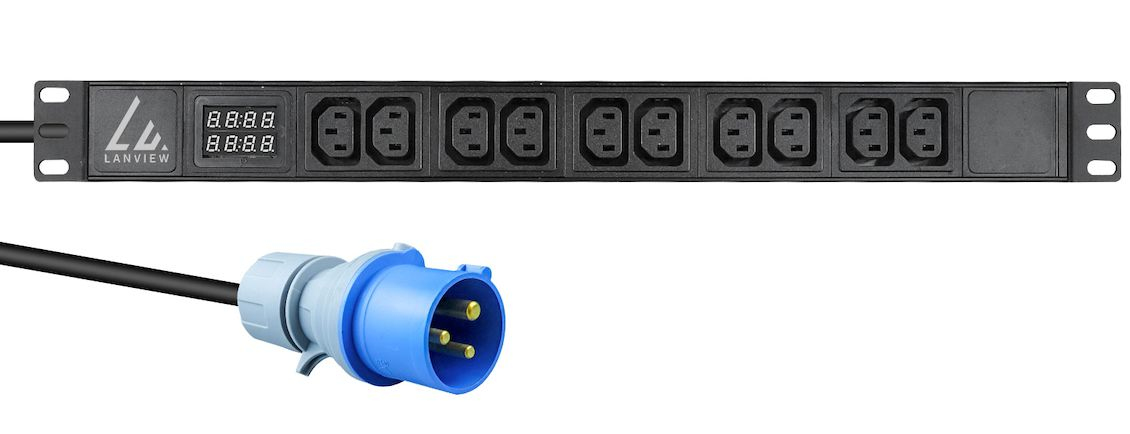

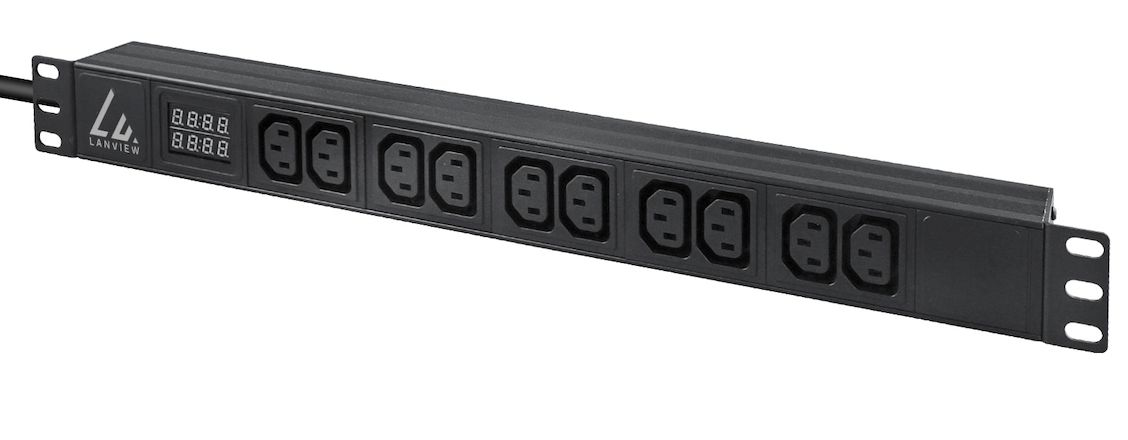

LVR-3MIEC-AMP-10C13 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Model LVR-3MIEC-AMP-10C13EAN 5715063053010
22 specifications
- TypeSingle-phase
- Weight1.3 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity10 AC outlet(s)
- LED indicatorsYes
Overview
- Type
- Single-phase
- Weight
- 1.3 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 10 AC outlet(s)
- LED indicators
- Yes
- Brand
- Lanview
- Category
- Power Distribution Units (PDUs)
- Model
- LVR-3MIEC-AMP-10C13
- Part number
- LVR-3MIEC-AMP-10C13
- EAN / UPC
- 5715063053010
- Also known as
- Lanview LVR-3MIEC-AMP-10C13 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Specifications
22 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
| Metering | AMP |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.5 mm |
| Depth | 44.4 mm |
| Height | 44.4 mm |
| Weight | 1.3 kg |
| Size (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.5 kg |
