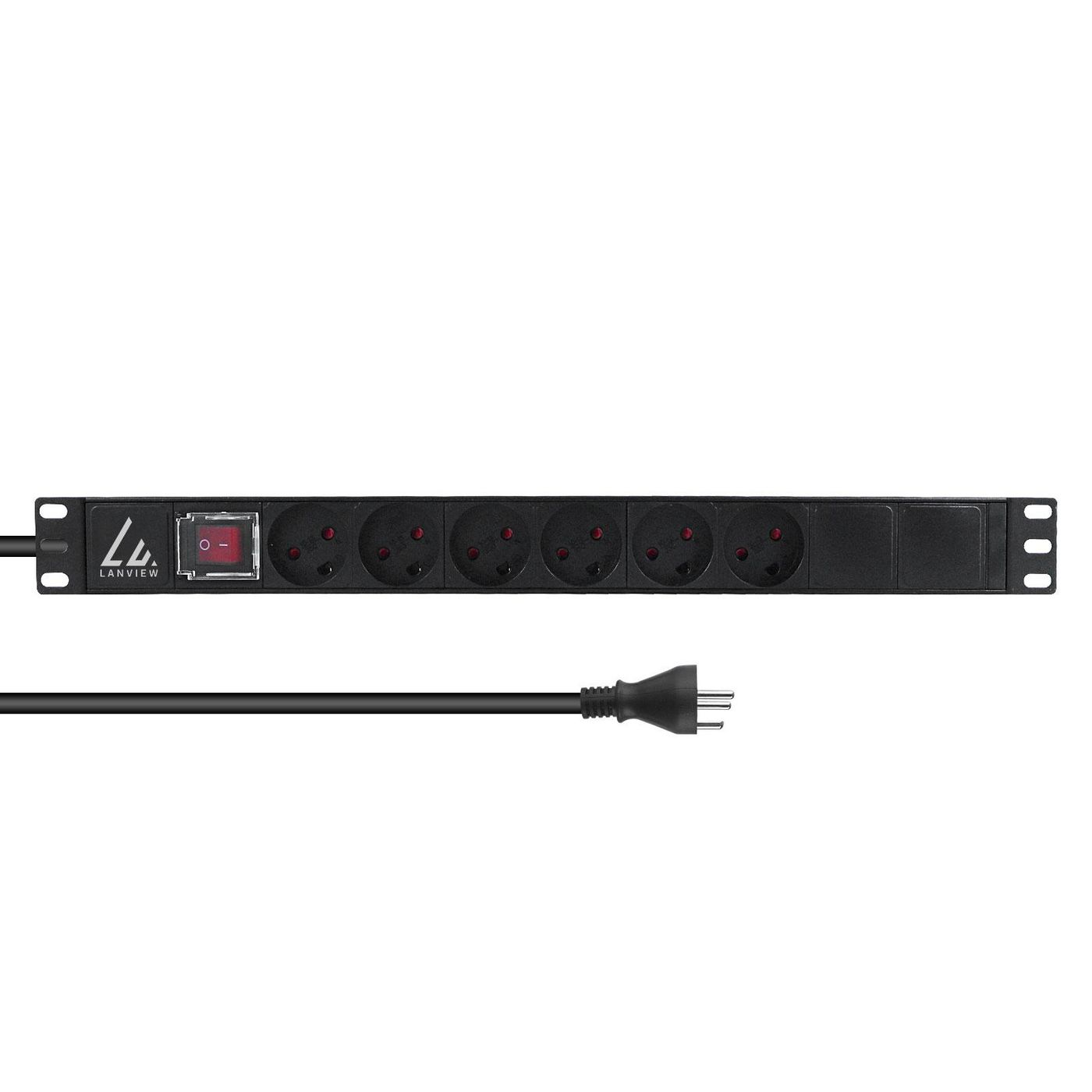

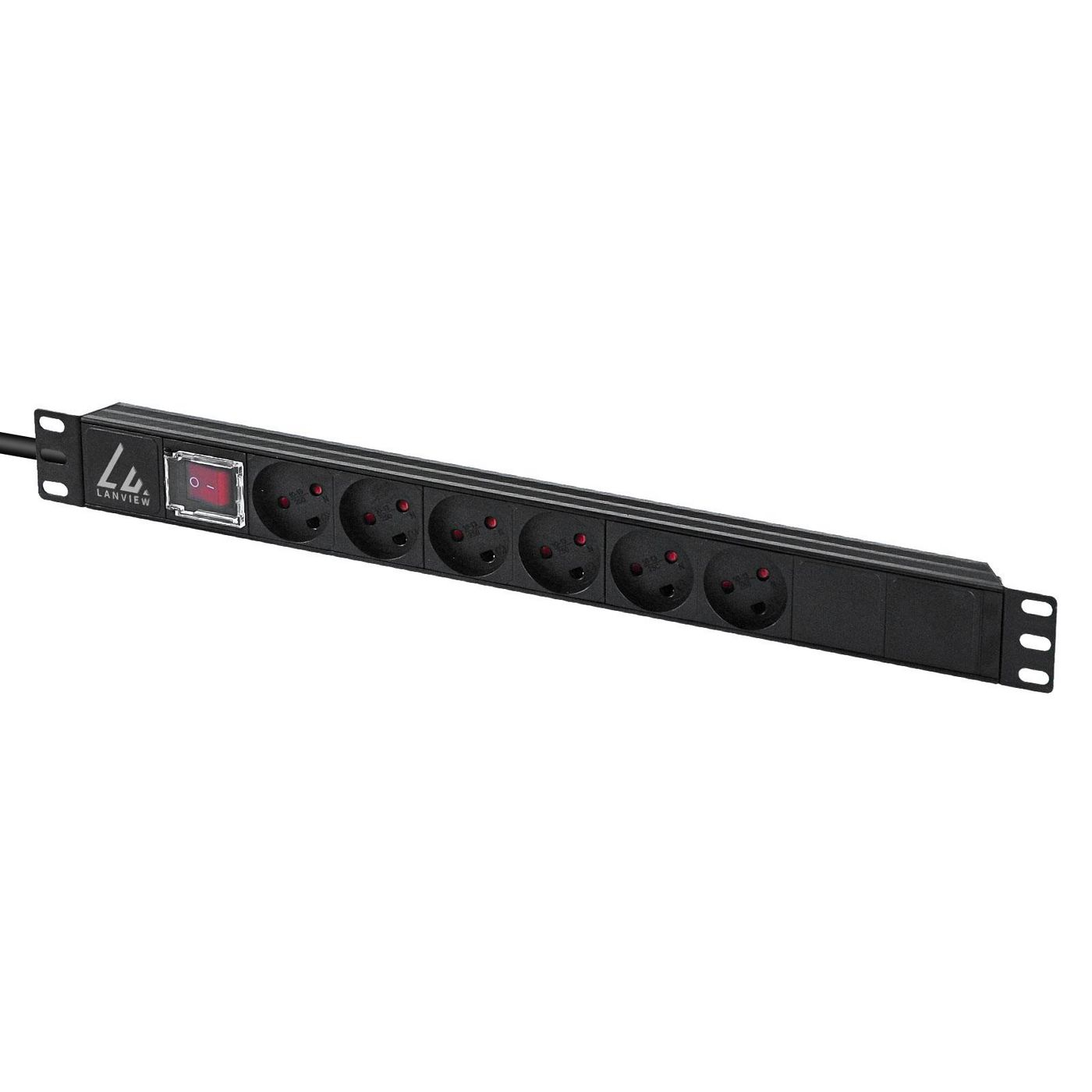

LVR-3MDK-SW-DK6 power distribution unit (PDU) 6 AC outlet(s) 1U Black
Model LVR-3MDK-SW-DK6EAN 5715063054222
24 specifications
- TypeSingle-phase
- Weight1.1 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity6 AC outlet(s)
- LED indicatorsSwitch
Overview
- Type
- Single-phase
- Weight
- 1.1 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 6 AC outlet(s)
- LED indicators
- Switch
- Brand
- Lanview
- Category
- Power Distribution Units (PDUs)
- Model
- LVR-3MDK-SW-DK6
- Part number
- LVR-3MDK-SW-DK6
- EAN / UPC
- 5715063054222
- Also known as
- Lanview LVR-3MDK-SW-DK6 power distribution unit (PDU) 6 AC outlet(s) 1U Black
Specifications
24 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | Type K |
| AC outlet types | Type K |
Features
| Specification | Value |
|---|---|
| LED indicators | Switch |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Maximum current | 13 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Number of phases | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 500 mm |
| Depth | 80 mm |
| Height | 60 mm |
| Weight | 1.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.2 kg |
| Package width | 500 mm |
| Package depth | 80 mm |
| Package height | 60 mm |
