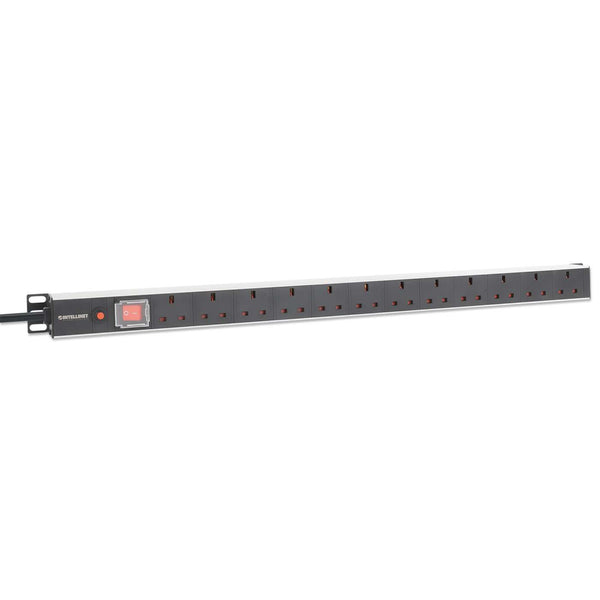

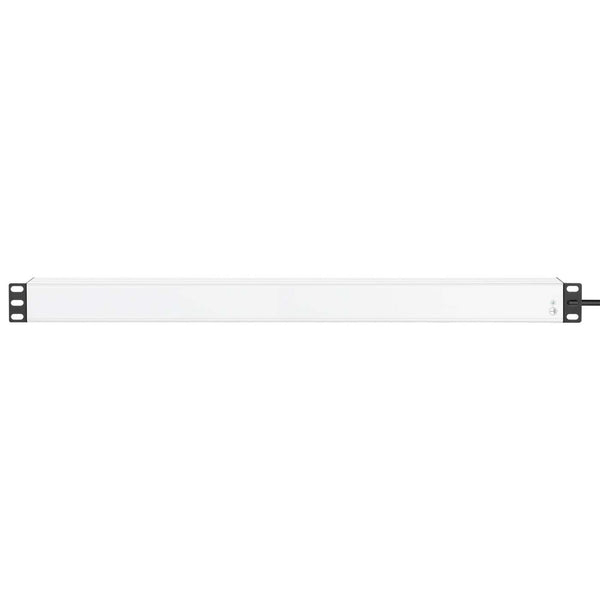

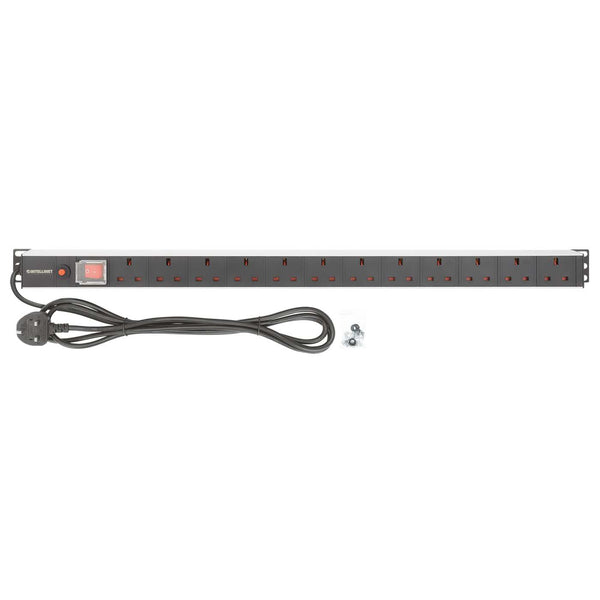

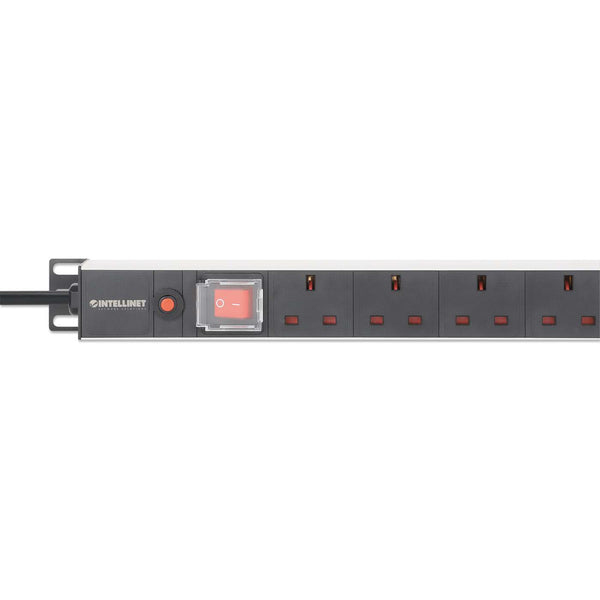

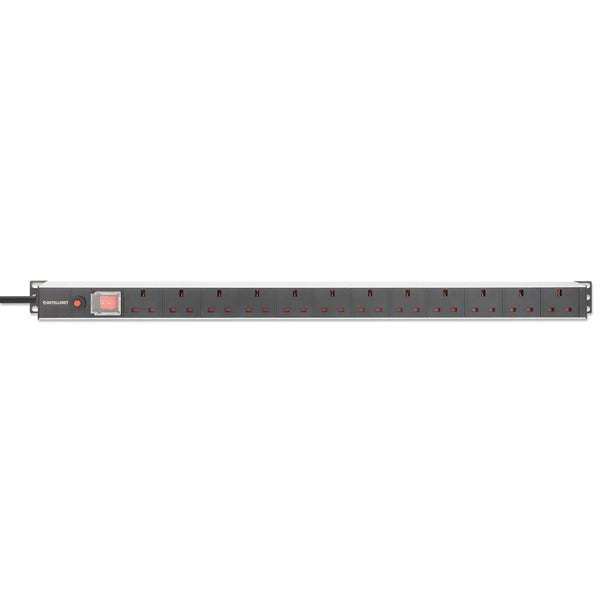

19" 1U PDU 12-way UK, Vertical type, With switch and overload protection, Rackmount, Power Distribution Unit, UK 3-pin outlets, 1.8m power cord, outp
Model 715614EAN 766623715614
26 specifications
- Power3250 W
- TypeSingle-phase
- Weight1.14 kg
- ColourBlack, White
- AC outlets quantity12 AC outlet(s)
- LED indicatorsYes
Overview
- Power
- 3250 W
- Type
- Single-phase
- Weight
- 1.14 kg
- Colour
- Black, White
- AC outlets quantity
- 12 AC outlet(s)
- LED indicators
- Yes
- Brand
- Intellinet
- Category
- Power Distribution Units (PDUs)
- Model
- 715614
- Part number
- 715614
- EAN / UPC
- 766623715614
- Also known as
- Intellinet 19" 1U PDU 12-way UK, Vertical type, With switch and overload protection, Rackmount, Power Distribution Unit, UK 3-pin outlets, 1.8m power cord, outp
Specifications
26 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Aluminium |
| Product colour | Black, White |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | BS 1363 |
| AC outlet types | BS 1363 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 2 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 220 - 250 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 13 A |
| Maximum power | 3250 W |
| Power protection features | Overload |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UKCA, CE, RoHS, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 768 mm |
| Depth | 62 mm |
| Height | 47 mm |
| Weight | 1.14 kg |
| Size (imperial) | 48.3 cm (19") |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.27 kg |
| Package width | 820 mm |
| Package depth | 97 mm |
| Package height | 62 mm |
