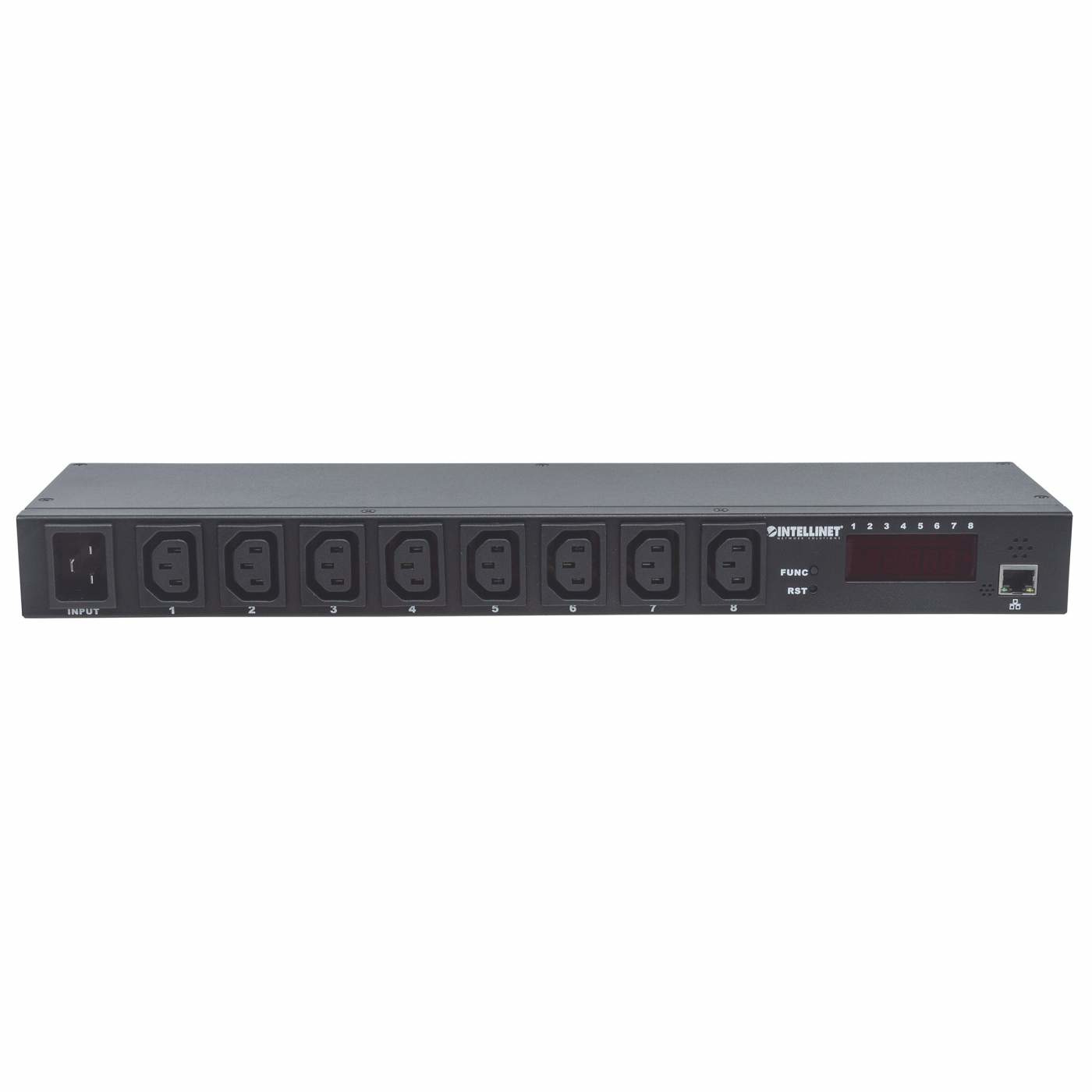

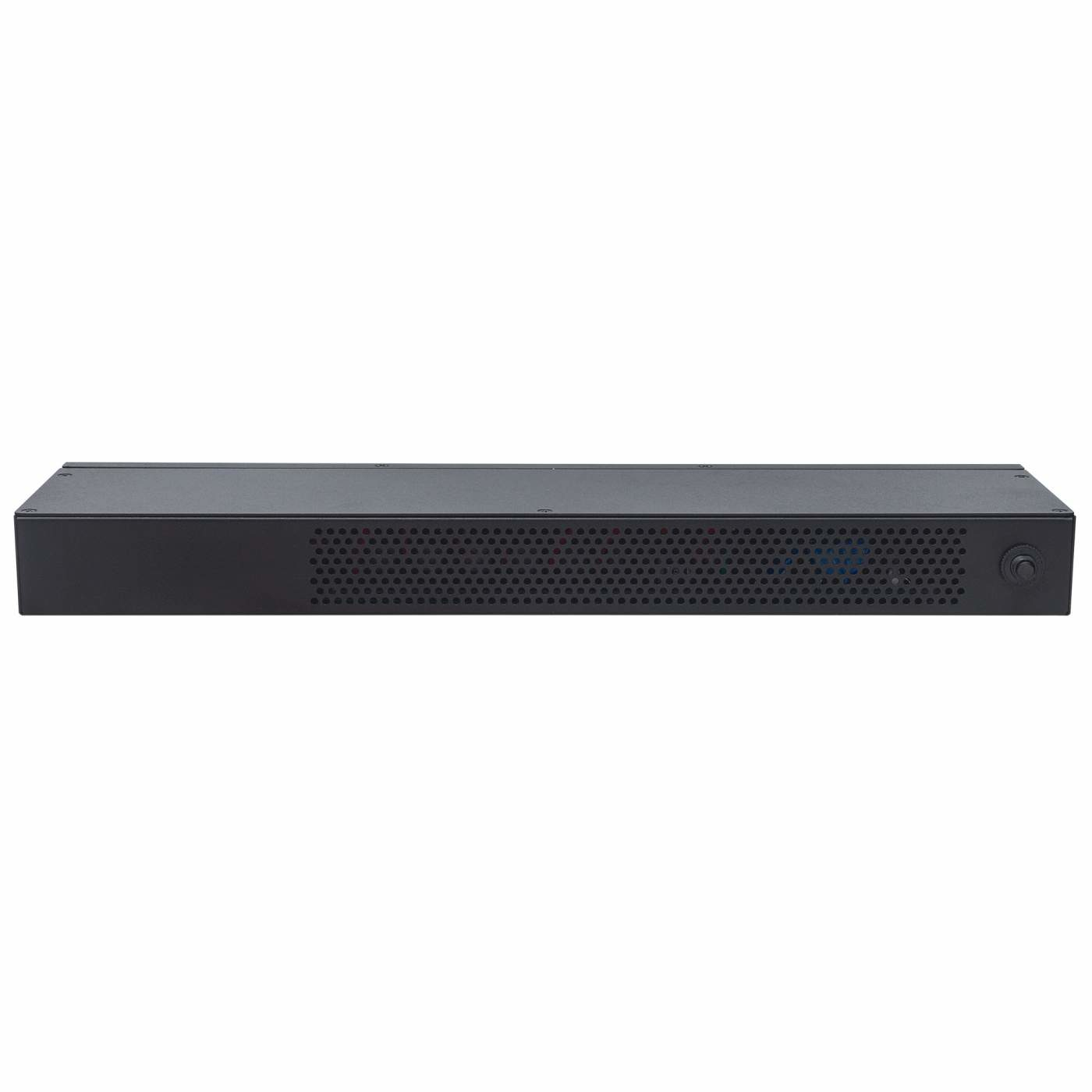

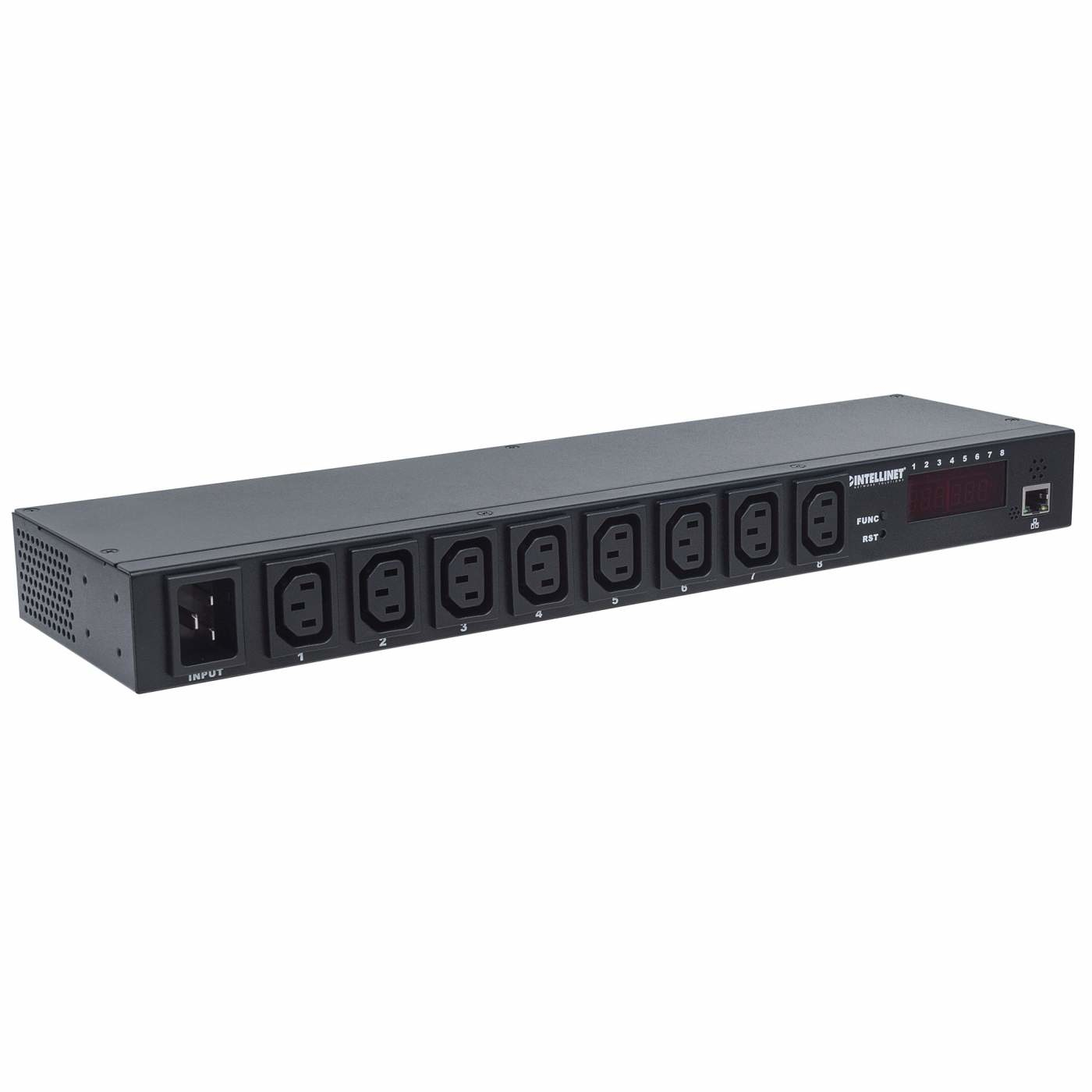

19" Intelligent 8-Port PDU
19" Rackmountable C13 Intelligent Power Distribution Unit; Monitors Power, Temperature and Humidity
Model 163682EAN 766623163682
25 specifications
- Weight1.6 kg
- ColourBlack
- PDU typesMonitored
- AC outlets quantity8 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage90 - 240 V
Overview
- Weight
- 1.6 kg
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 8 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 90 - 240 V
- Brand
- Intellinet
- Category
- Power Distribution Units (PDUs)
- Model
- 163682
- Part number
- 163682
- EAN / UPC
- 766623163682
- Also known as
- Intellinet 19" Intelligent 8-Port PDU, 19" Rackmountable C13 Intelligent Power Distribution Unit; Monitors Power, Temperature and Humidity
Specifications
25 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Housing material | Metal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |

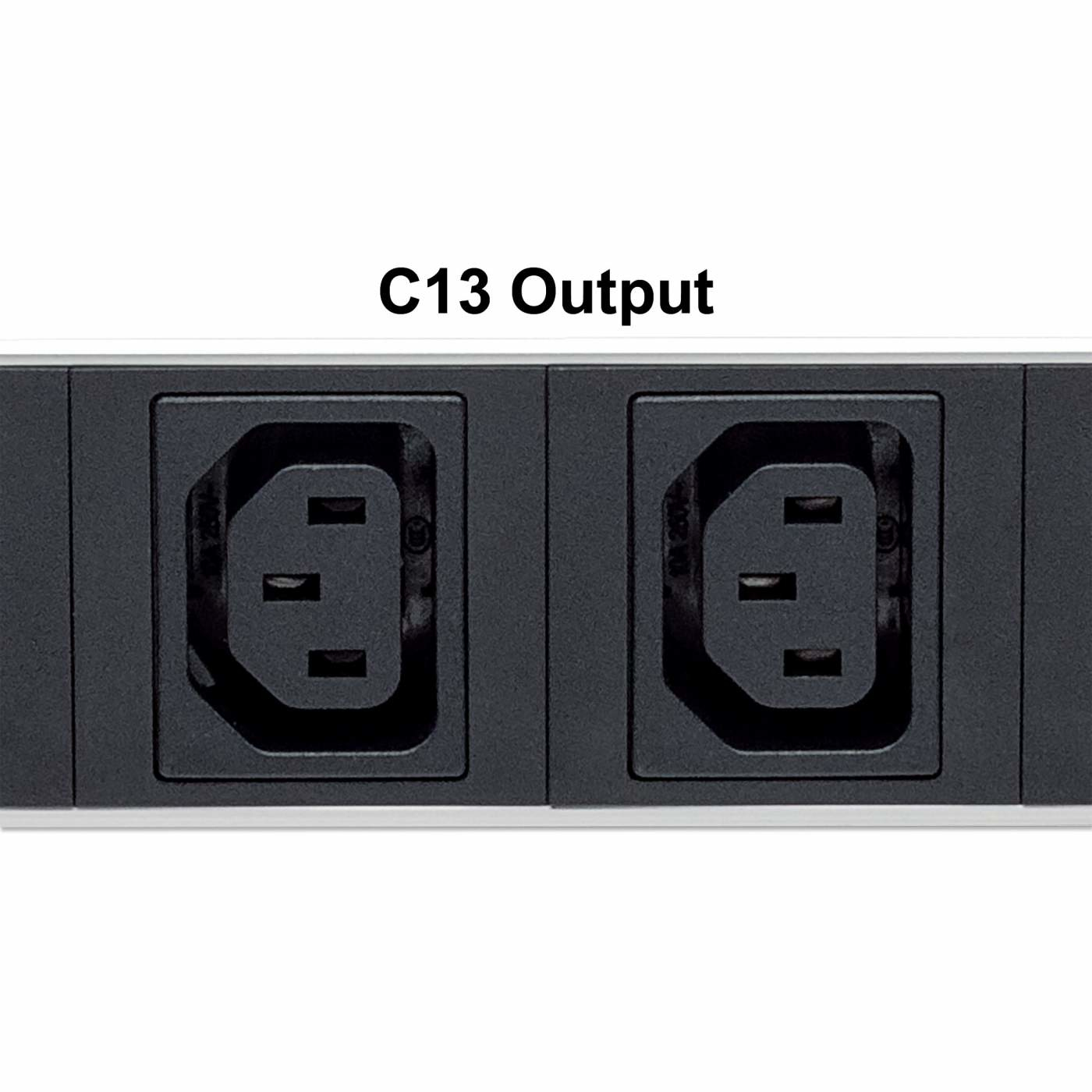

| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |

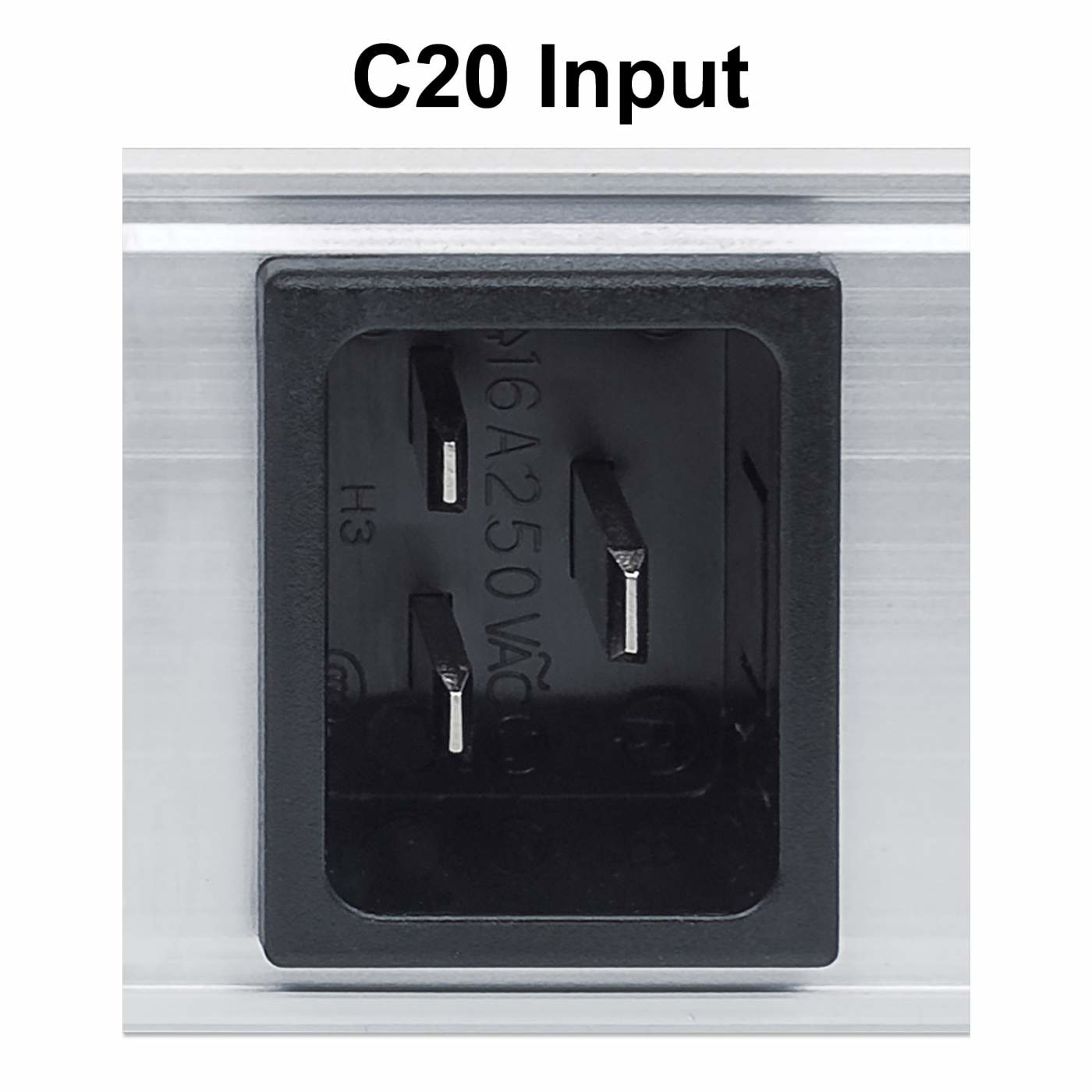

| Input connection type | IEC320 C20 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Humidity, Temperature, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 90 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Output voltage | 90 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UL |
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 119.5 mm |
| Height | 44.5 mm |
| Weight | 1.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package height | 2380 mm |
