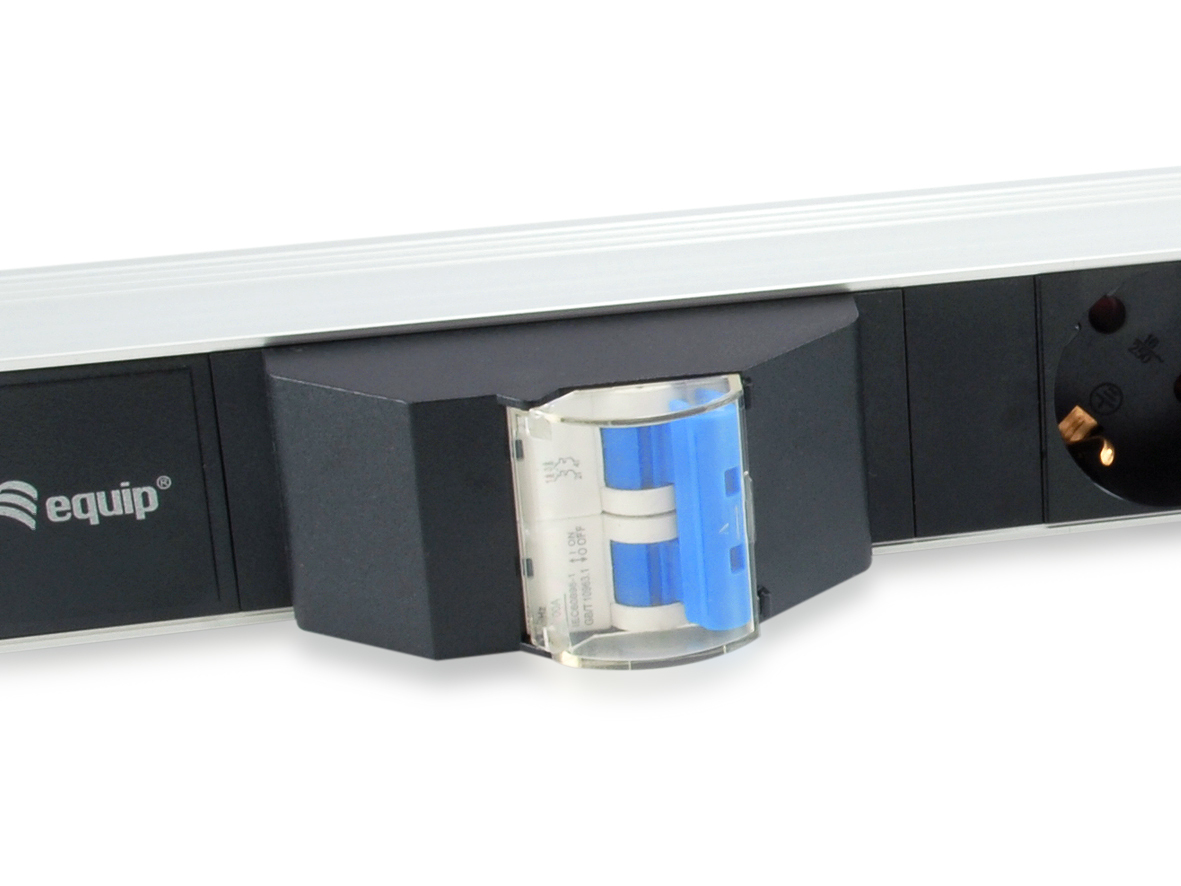

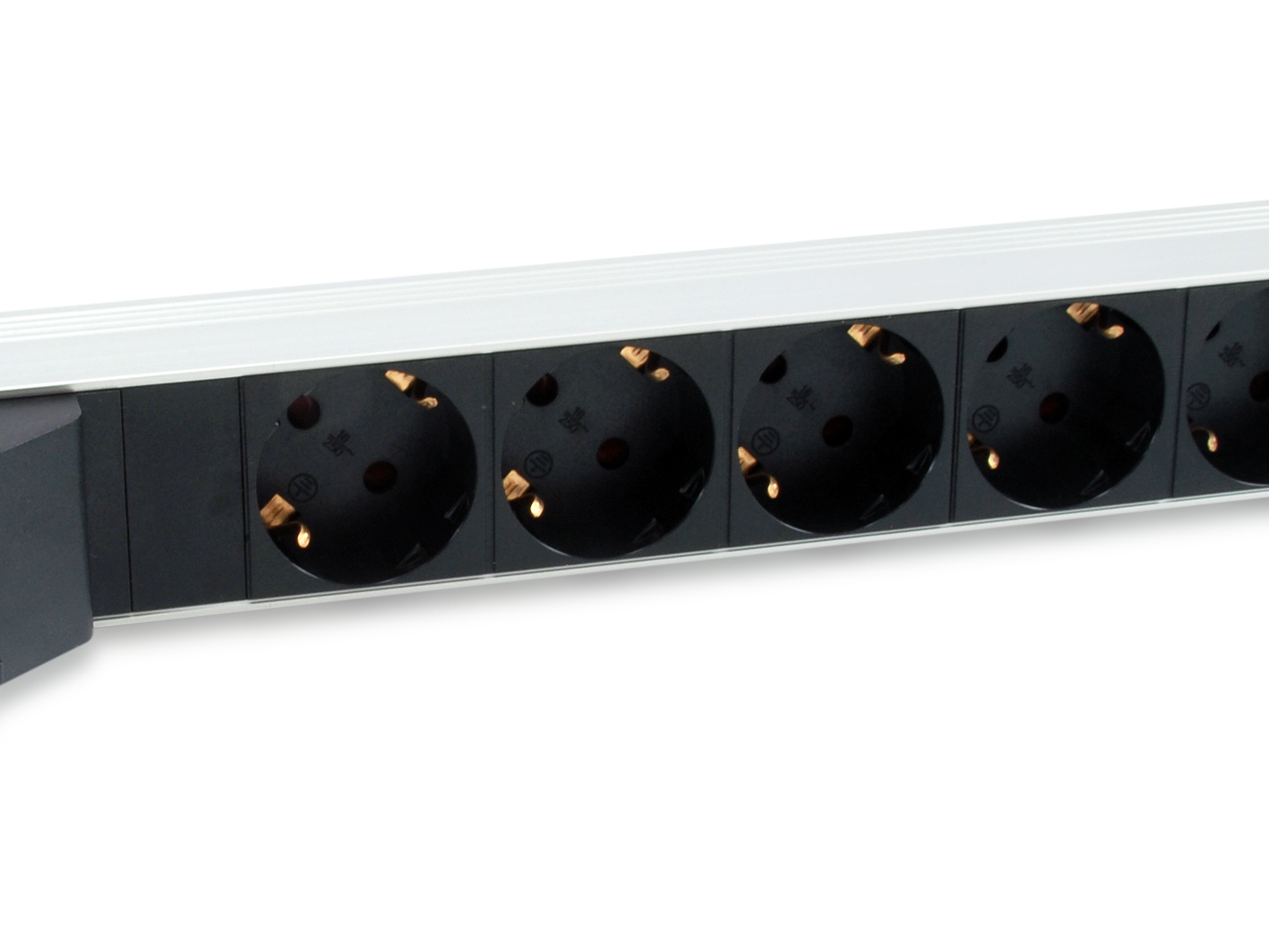

333312 power distribution unit (PDU) 6 AC outlet(s) 1U Black
Model 333312EAN 4015867223109
27 specifications
- Power3500 W
- Weight790 g
- ColourBlack
- PDU typesBasic
- AC outlets quantity6 AC outlet(s)
- Cable length1.8 m
Overview
- Power
- 3500 W
- Weight
- 790 g
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 6 AC outlet(s)
- Cable length
- 1.8 m
- Brand
- Equip
- Category
- Power Distribution Units (PDUs)
- Model
- 333312
- Part number
- 333312
- EAN / UPC
- 4015867223109
- Also known as
- Equip 333312 power distribution unit (PDU) 6 AC outlet(s) 1U Black
Specifications
27 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Aluminium |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | Type F |
| AC outlet types | Type F |
Features
| Specification | Value |
|---|---|
| Cable length | 1.8 m |
| Cable type | H05VV-F 3G 1.5 mm² |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Maximum power | 3500 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 45 mm |
| Height | 45 mm |
| Weight | 790 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 920 g |
| Package width | 90 mm |
| Package depth | 60 mm |
| Package height | 515 mm |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
